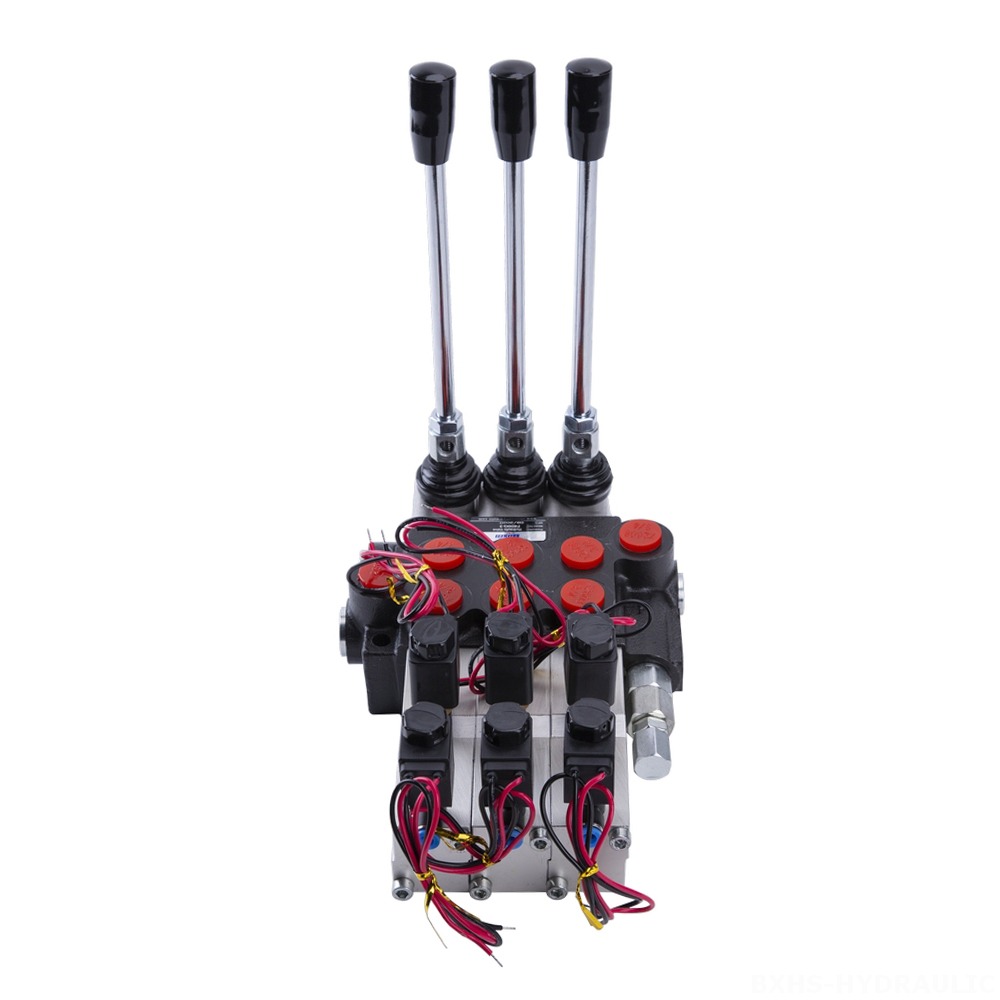

P40 Electro-hydraulic Directional Control Valve

P40 Directional Control Valve

P40 series are economical monoblock directional control valves with various applications and features of compact structure, stable performance.

low price and high universality.

Control type: manual, cable, solenoid,pneumatic,electro-hydraulic, etc.

Circuit type: parallel.

Monoblock structure,1-7 sections.

in stock

5-10 days

not in stock

25-30 days

24/7 Support

Unlimited help desk

the warranty

12-month warranty

Additional information

Model No.	P40 Series Hydraulic Valve
Presure Medium	Mineral oil based hydraulic oil
Nominal Flow	40 L/min (10.5 gpm)
Viscosity Range	12 CST-400 CST
Operating Pressure	Maximum 250 bar at P Port
Internal Leakage	15 cc/min at 160 bar, 50℃
Ambient Temp	-40°C to +80°C (-40°F to +176°F)
Spool Stroke	±6mm
Valve Structure	Monoblock Valve
Valve Surface	Phosphating treating
Valve Sections	1-7 sections
Rustproof Level	Neutral salt spray test, 48hours

Description

The P40 series is a range of cost-effective monoblock directional control valves designed for various applications, featuring a compact structure and stable performance. With its low price and high universality, the P40 series offers a range of control types including manual, cable, solenoid, pneumatic, electro-hydraulic, among others. The circuit type is parallel, and the monoblock structure is available in 1-7 sections. Overall, the P40 series is a versatile and reliable solution for directional control needs.
