OEM/ODM Services

BXHS Hydraulic offers OEM/ODM services for customers who require customized hydraulic products with their own branding. Our OEM/ODM process can be summarized as follows:

   1. Customer Requirements: The customer provides us with their specific requirements, including product design, specifications, quantities, and branding details.

   2. Design and Development: Our experienced engineering team will then work on designing and developing a prototype based on the customer's requirements and branding details.

   3. Prototype Approval: Once the prototype is complete, we will send it to the customer for approval. If any modifications are required, we will work with the customer to make the necessary changes.

   4. Branding and Production: After the prototype is approved, we will start the mass production process with the customer's branding details incorporated into the products.

   5. Quality Control: During the production process, we have a strict quality control system to ensure that every product meets our high standards and the customer's branding requirements.

   6. Delivery: After the production process is complete, we will deliver the branded products to the customer.

At BXHS Hydraulic, we take pride in our OEM/ODM services and strive to provide high-quality hydraulic products that meet our customers' specific requirements and branding needs. If you're looking for OEM/ODM manufacturer in the hydraulic products industry, please contact us to learn more about how we can assist you with your hydraulic system needs. With our extensive industry experience and expertise, we can provide you with high-quality hydraulic products and services. Feel free to reach out to us to find out more.

Main Products

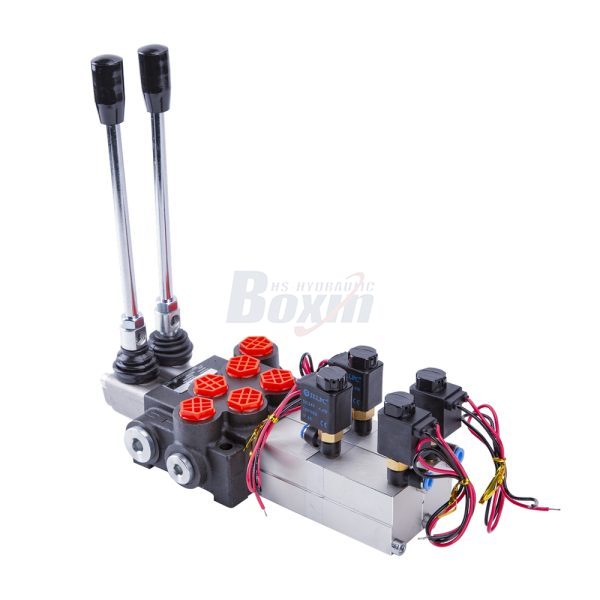

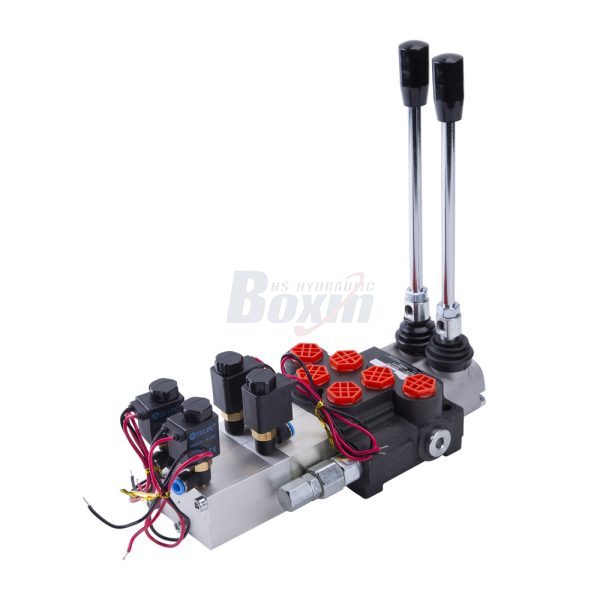

P40 Electro-pneumatic Directional Control Valve

In stock

Control Method

electro-pneumatic

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

40 L/min (10.5 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

Maximum 250 bar at P Port

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Spool Stroke

±6mm

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

Monoblock Directional Valve 10.5 GPM 4 Spool Manual P40-G12-G38-2OT-2QTW – Manufacturing, OEM, Private Label, Custom & Wholesale

In stock

Weight 8.20 kg
Dimensions 23 × 24 × 13 cm
Control Method

manual

Section

4 Section

Structure Type

Monoblock valve

Rated Flow

40 L/min (10.5 US gpm)

Max Pressure

250 bar (3600 psi)

Operating Viscosity Range

15 – 75 mm²/s (15 cSt to 75 cSt)

Ambient Temperature Range

-40°C to +80°C (-40°F to +176°F)

spool

4 Spool

Product model

P40-G12-G38-2OT-2QTW Manual

Hydraulic Gear Pump 63 cc/rev CBSL-2063-2040 Bidirectional – Global Manufacturing & OEM Services

In stock

Weight 27.40 kg
Dimensions 44.1 × 12.5 × 14.7 cm
Displacement

63 cc/rev

Rated Pressure

20 MPa (2900 psi)

Max Pressure

25 MPa (3625 psi)

Rated Speed

2000 r/min

Max Speed

2250 r/min

Rotation

/: (Bidirectional)

Structure

External Gear Pump

Material

Cast Iron

Flange Version

ISO-4 Mounting Holes

Shaft Type

H: Rectangle Spline

Product Model

CBSL-2063-2040 63 cc/rev

Hydraulic Gear Pump 20 cc/rev CBHS-F520R – Manufacturer, OEM, ODM, Wholesale & Distributor Wanted

In stock

Weight 5.50 kg
Dimensions 20 × 20 × 20 cm
Displacement

20 cc/rev

Rated Pressure

20 MPa (2900 psi)

Rated Speed

2000 r/min

Max Speed

2200 r/min

Rotation

L: Left (counter-clockwise) , R: Right (clockwise)

Structure

Internal Gear Pump

Material

Cast Iron

Flange Version

B-Square Flange

Shaft Type

P: Plain Key, H: Rectangle Spline, X: Involute Spline

Product model

CBHS-F520R 20 cc/rev

Monoblock Directional Valve 21.2 GPM 1 Spool Manual P80J – Manufacturing, OEM, Private Label, Custom & Wholesale

In stock

Weight 5.00 kg
Dimensions 26 × 15 × 11 cm
Control Method

manual

Section

1 Section

Structure Type

Monoblock valve

Rated Flow

80 L/min (21.2 US gpm)

Max Pressure

315 bar (31.5 MPa)

Operating Viscosity Range

15 – 75 mm²/s (15 cSt to 75 cSt)

Ambient Temperature Range

-40°C to +80°C (-40°F to +176°F)

spool

1 Spool

Product model

P80J Manual

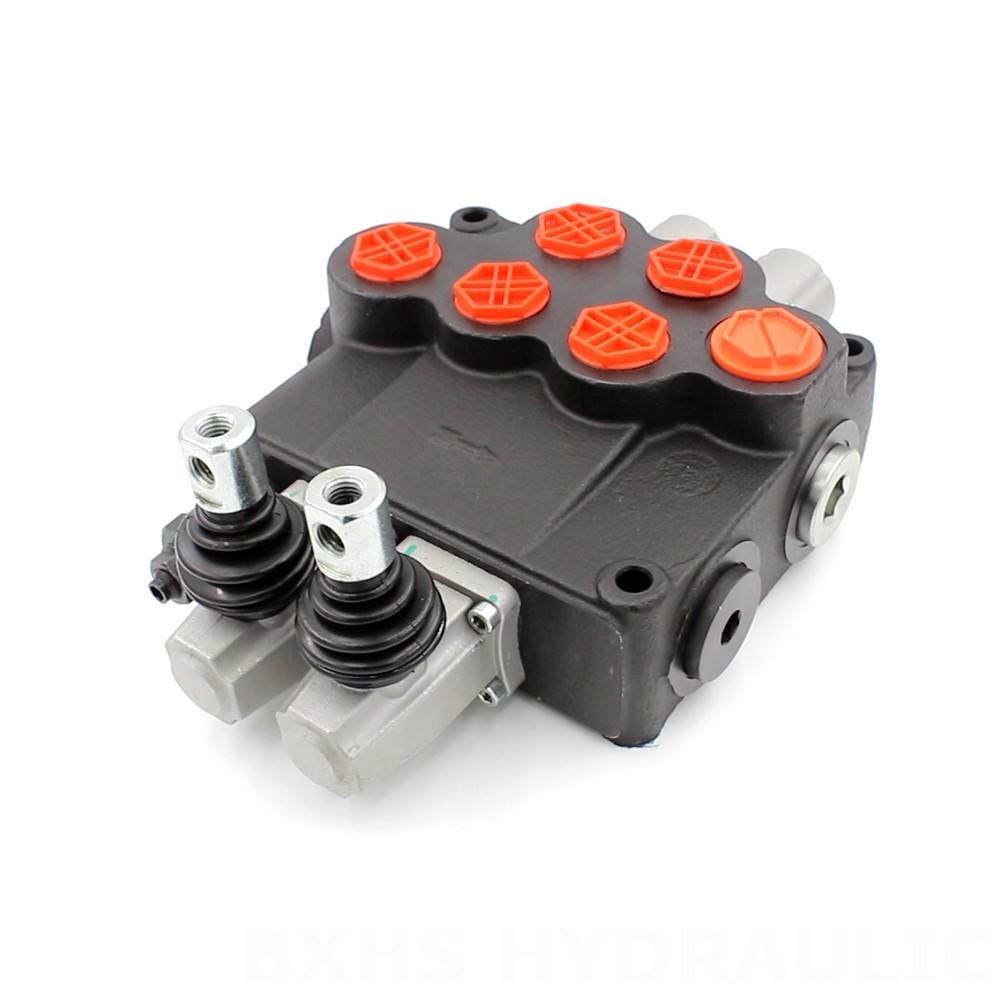

P120 Manual Directional Control Valve

In stock

Control Method

manual

Presure Medium

Mineral oil based hydraulic oil

Nominal Flow

120 L/min (31.5 gpm)

Viscosity Range

12 CST-400 CST

Operating Pressure

Maximum 250 bar at P Port

Internal Leakage

15 cc/min at 160 bar, 50℃

Ambient Temp

-40°C to +80°C (-40°F to +176°F)

Spool Stroke

±6mm

Valve Structure

Monoblock Valve

Valve Surface

Phosphating treating

Valve Sections

1-7 sections

Rustproof Level

Neutral salt spray test, 48hours

Monoblock Directional Valve 10.5 GPM 1 Spool Manual P40-G38 – Manufacturing, OEM, Private Label, Custom & Wholesale

In stock

Weight 3.00 kg
Dimensions 23 × 16 × 11 cm
Control Method

manual

Section

1 Section

Structure Type

Monoblock valve

Rated Flow

40 L/min (10.5 US gpm)

Max Pressure

250 bar (3600 psi)

Operating Viscosity Range

15 – 75 mm²/s (15 cSt to 75 cSt)

Ambient Temperature Range

-40°C to +80°C (-40°F to +176°F)

spool

1 Spool

Product model

P40-G38 Manual

Monoblock Directional Valve 10.5 GPM 3 Spool Manual P40-G38-G12-OT: Manufacturing, OEM, Private Label, Custom & Wholesale

In stock

Weight 6.60 kg
Dimensions 24 × 21 × 13 cm
Control Method

manual

Section

3 Section

Structure Type

Monoblock valve

Rated Flow

40 L/min (10.5 US gpm)

Max Pressure

250 bar (3600 psi)

Operating Viscosity Range

15 – 75 mm²/s (15 cSt to 75 cSt)

Ambient Temperature Range

-40°C to +80°C (-40°F to +176°F)

spool

3 Spool

Product model

P40-G38-G12-OT Manual

Hydraulic Flow Diverter Valve 23.8 GPM, 1 Spool HSV9YK-1LF for Industrial Systems

In stock

Weight 6.50 kg
Dimensions 26 × 20 × 15 cm
Control Method

hydraulic

Section

1 Section

Structure Type

Sectional valve

Rated Flow

90 L/min (23.8 US gpm)

Max Pressure

180 bar (2600 psi)

Operating Viscosity Range

15 – 75 mm²/s (15 cSt to 75 cSt)

Ambient Temperature Range

-20°C to +80°C (-4°F to +176°F)

Inlet Port

G1/2

Outlet Port

G1/2

Port Size

G1/2

Product Model

HSV9YK-1LF Hydraulic

21.2 GPM Hydraulic Monoblock Valve (P80-G12-QTW) – Distributors, Wholesalers & Agents Wanted

In stock

Weight 5.00 kg
Dimensions 26 × 17 × 11 cm
Control Method

manual

Section

1 Section

Structure Type

Monoblock valve

Rated Flow

80 L/min (21.2 US gpm)

Max Pressure

315 bar (31.5 MPa)

Operating Viscosity Range

15 – 75 mm²/s (15 cSt to 75 cSt)

Ambient Temperature Range

-40°C to +80°C (-40°F to +176°F)

spool

1 Spool

Product model

P80-G12-QTW Manual
