All productsShowing all 4 results

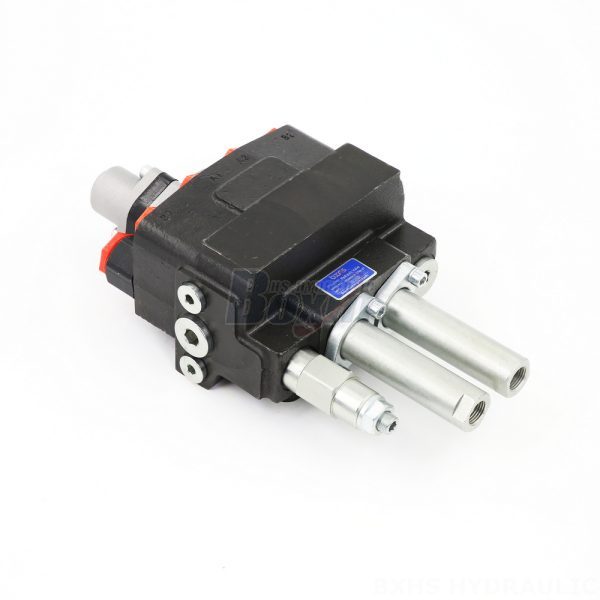

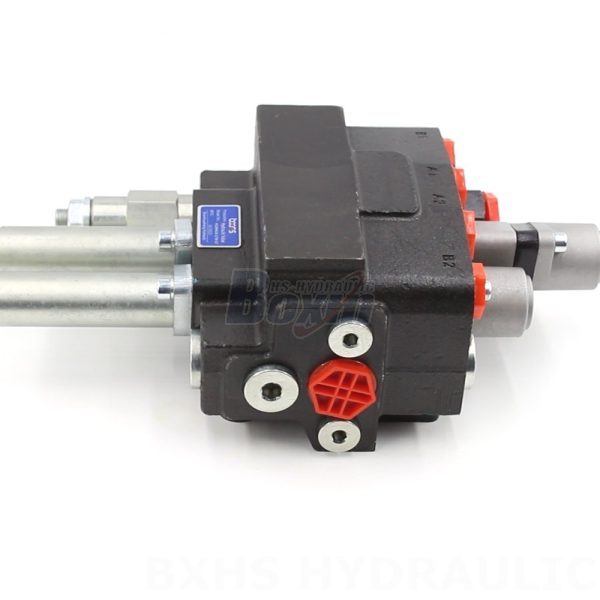

BXHS Directional Valves: 11.8 GPM 2-Spool Monoblock DM45 – Manufacturing, OEM & Distribution
In stock
| Weight | 10.50 kg |
|---|---|
| Dimensions | 25 × 35 × 18 cm |
| Control Method |
cable |
| Section |
2 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
45 L/min (11.8 US gpm) |
| Max Pressure |
315 bar (31.5 MPa) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Spool |
2 Spool |
| Product Model |
DM45 Cable |
Customizable Monoblock Directional Valves | 11.8 GPM Electro-hydraulic 2 Spool SD5 – OEM, ODM & Private Labeling Services
In stock
| Weight | 9.00 kg |
|---|---|
| Dimensions | 35 × 27 × 17 cm |
| Control Method |
Electro-hydraulic |
| Spool |
2 Spool |
| Rated Flow |
45 L/min (11.8 US gpm) |
| Max Pressure |
315 bar (4600 psi) |
| Inlet Port |
G1/2 |
| Outlet Port |
G1/2 |
| Port Size |
G1/2 |
| Section |
1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Structure Type |
Monoblock valve |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +60°C (-40°F to +140°F) |
| Product Model |
SD5 Electro-hydraulic |
Monoblock Directional Valve 11.8 GPM 2 Spool Cable DM45: Manufacturing, OEM, Private Label, Custom & Wholesale
In stock
| Weight | 10.50 kg |
|---|---|
| Dimensions | 25 × 35 × 18 cm |
| Control Method |
cable |
| Section |
2 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
45 L/min (11.8 US gpm) |
| Max Pressure |
315 bar (31.5 MPa) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Spool |
2 Spool |
| Product Model |
DM45 Cable |
Our Products and Services
Here's what we can do
Our main products include Directional Control Valves, Gear Pumps, Steering Equipment, and Power Units, with over 500 models that are widely used in various industries such as construction, sanitation, drilling, and mining. In addition to our standard product offerings, we also support OEM/ODM services, allowing us to customize hydraulic products according to our customers' specific needs and requirements. Our professional R&D team and advanced production technology ensure the quality and timely delivery of our products, while our comprehensive pre-sales and after-sales services help our customers improve their product competitiveness.
