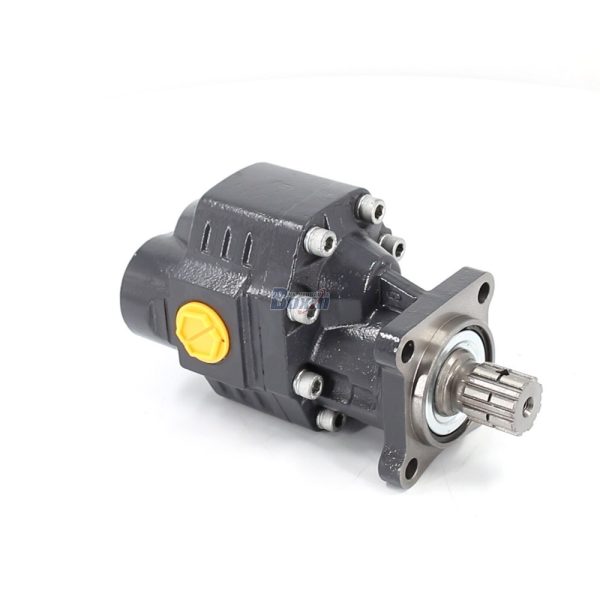

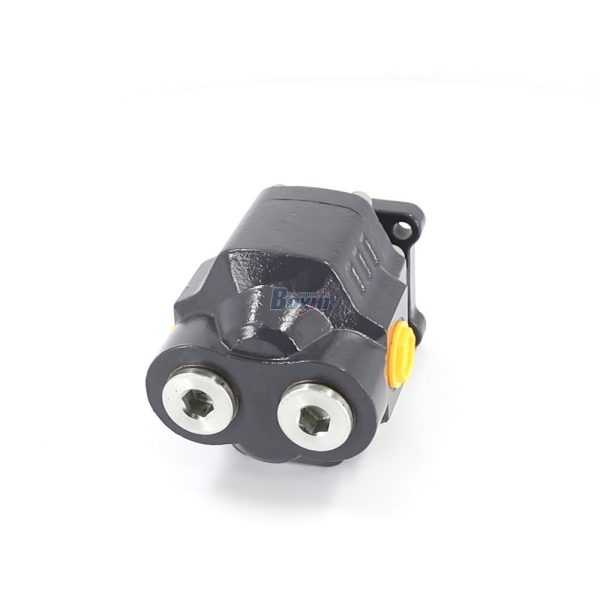

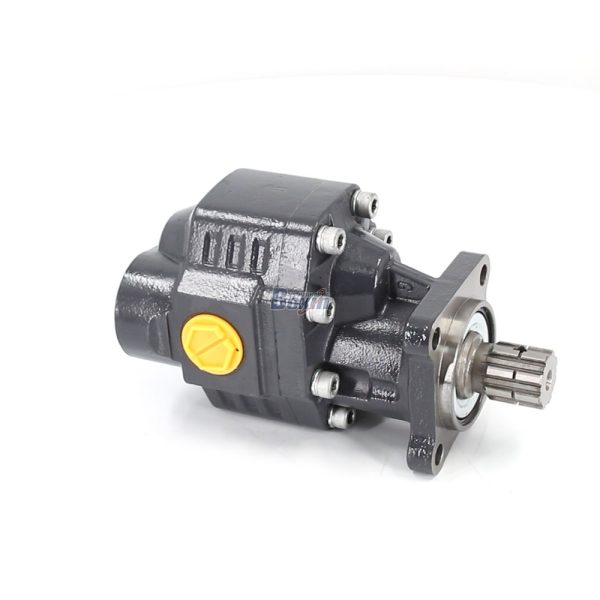

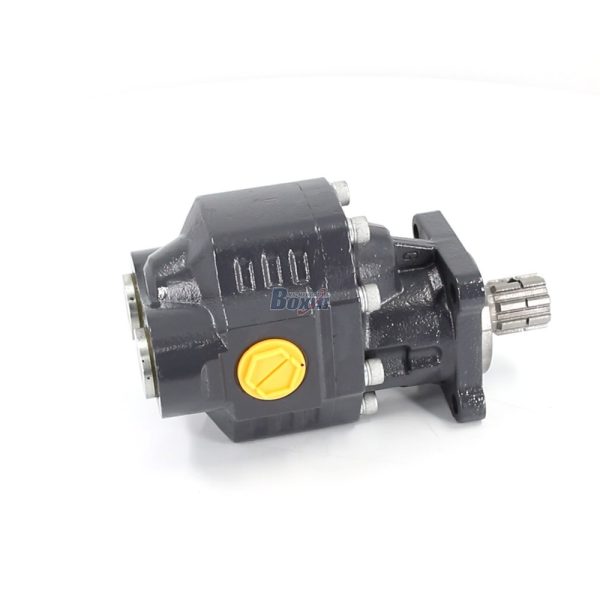

80 cc/rev Bidirectional Hydraulic Gear Pump – OEM, Private Label, Wholesale
In stock
| Weight | 16.00 kg |
|---|---|
| Dimensions | 34 × 17 × 17 cm |
| Displacement |
80 cc/rev |
| Rated Pressure |
20 MPa (2900 psi) |
| Max Pressure |
23 MPa (3335 psi) |
| Rated Speed |
2200 r/min |
| Max Speed |
2500 r/min |
| Rotation |
/: (Bidirectional) |
| Structure |
External Gear Pump, Internal Gear Pump |
| Material |
Cast Iron |
| Flange Version |
ISO-4 Mounting Holes, UNI-3 Mounting Holes |
| Shaft Type |
H: Rectangle Spline |
| Product Model |
CBHW-ISO-80-H 80 cc/rev |
CBHW-ISO-80-H Bidirectional Hydraulic Gear Pump – 80 cc/rev
In stock
| Weight | 16.00 kg |
|---|---|
| Dimensions | 34 × 17 × 17 cm |
| Displacement |
80 cc/rev |
| Rated Pressure |
20 MPa (2900 psi) |
| Max Pressure |
23 MPa (3335 psi) |
| Rated Speed |
2200 r/min |
| Max Speed |
2500 r/min |
| Rotation |
/: (Bidirectional) |
| Structure |
External Gear Pump, Internal Gear Pump |
| Material |
Cast Iron |
| Flange Version |
ISO-4 Mounting Holes, UNI-3 Mounting Holes |
| Shaft Type |
H: Rectangle Spline |
| Product Model |
CBHW-ISO-80-H 80 cc/rev |
Custom Bidirectional Hydraulic Gear Pump 80 cc/rev – CBHW-ISO-80-H Series
In stock
| Weight | 16.00 kg |
|---|---|
| Dimensions | 34 × 17 × 17 cm |
| Displacement |
80 cc/rev |
| Rated Pressure |
20 MPa (2900 psi) |
| Max Pressure |
23 MPa (3335 psi) |
| Rated Speed |
2200 r/min |
| Max Speed |
2500 r/min |
| Rotation |
/: (Bidirectional) |
| Structure |
External Gear Pump, Internal Gear Pump |
| Material |
Cast Iron |
| Flange Version |
ISO-4 Mounting Holes, UNI-3 Mounting Holes |
| Shaft Type |
H: Rectangle Spline |
| Product Model |
CBHW-ISO-80-H 80 cc/rev |
Industrial Bidirectional Hydraulic Gear Pump 80 cc/rev – Global Supply
In stock
| Weight | 16.00 kg |
|---|---|
| Dimensions | 34 × 17 × 17 cm |
| Displacement |
80 cc/rev |
| Rated Pressure |
20 MPa (2900 psi) |
| Max Pressure |
23 MPa (3335 psi) |
| Rated Speed |
2200 r/min |
| Max Speed |
2500 r/min |
| Rotation |
/: (Bidirectional) |
| Structure |
External Gear Pump, Internal Gear Pump |
| Material |
Cast Iron |
| Flange Version |
ISO-4 Mounting Holes, UNI-3 Mounting Holes |
| Shaft Type |
H: Rectangle Spline |
| Product Model |
CBHW-ISO-80-H 80 cc/rev |
Our Products and Services
Here's what we can do
Our main products include Directional Control Valves, Gear Pumps, Steering Equipment, and Power Units, with over 500 models that are widely used in various industries such as construction, sanitation, drilling, and mining. In addition to our standard product offerings, we also support OEM/ODM services, allowing us to customize hydraulic products according to our customers' specific needs and requirements. Our professional R&D team and advanced production technology ensure the quality and timely delivery of our products, while our comprehensive pre-sales and after-sales services help our customers improve their product competitiveness.
