All productsShowing all 7 results

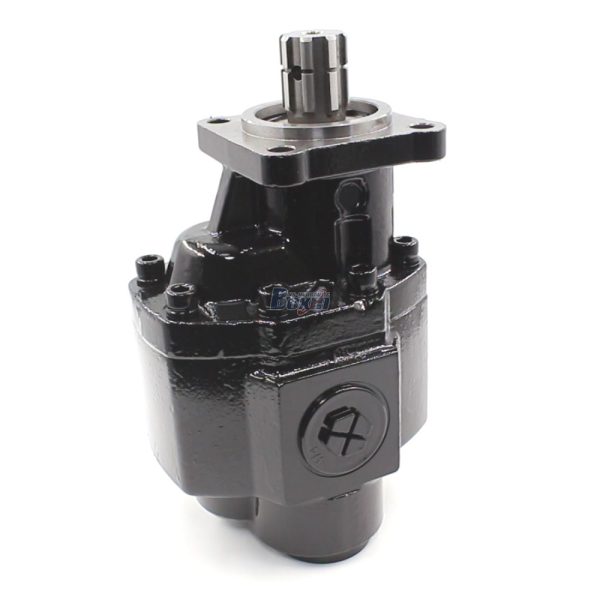

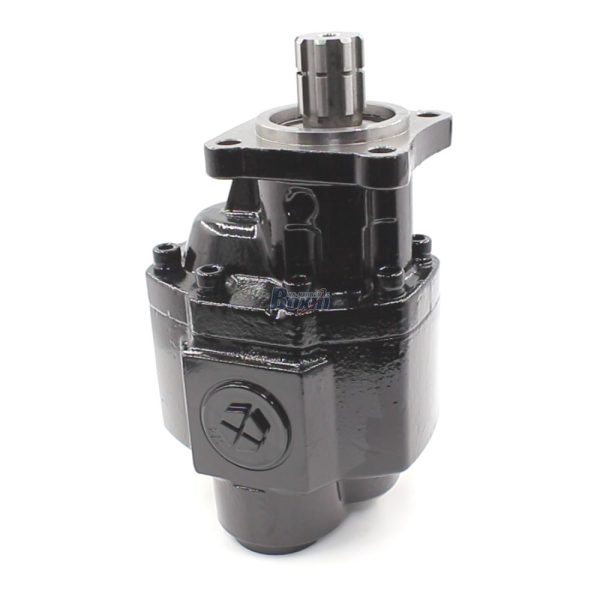

CBHST1-ISO-120: High-Volume Hydraulic Gear Pump (120 cc/rev) – Manufacturing, Wholesale & Global Distribution
In stock
| Weight | 21.00 kg |
|---|---|
| Dimensions | 34 × 17 × 17 cm |
| Displacement |
120 cc/rev |
| Rated Pressure |
20 MPa (2900 psi) |
| Max Pressure |
25 MPa (3625 psi) |
| Rated Speed |
2000 r/min |
| Max Speed |
2500 r/min |
| Rotation |
/: (Bidirectional) |
| Structure |
External Gear Pump |
| Material |
Cast Iron |
| Flange Version |
ISO-4 Mounting Holes |
| Shaft Type |
H: Rectangle Spline |
| Product Model |
CBHST1-ISO-120 120 cc/rev |
CBHW-ISO-80-H Bidirectional Hydraulic Gear Pump – 80 cc/rev
In stock
| Weight | 16.00 kg |
|---|---|
| Dimensions | 34 × 17 × 17 cm |
| Displacement |
80 cc/rev |
| Rated Pressure |
20 MPa (2900 psi) |
| Max Pressure |
23 MPa (3335 psi) |
| Rated Speed |
2200 r/min |
| Max Speed |
2500 r/min |
| Rotation |
/: (Bidirectional) |
| Structure |
External Gear Pump, Internal Gear Pump |
| Material |
Cast Iron |
| Flange Version |
ISO-4 Mounting Holes, UNI-3 Mounting Holes |
| Shaft Type |
H: Rectangle Spline |
| Product Model |
CBHW-ISO-80-H 80 cc/rev |
Hydraulic Piston Pump 80 cc/rev LB-80: Manufacturing, OEM, ODM, Customization & Wholesale
In stock
| Weight | 16.00 kg |
|---|---|
| Dimensions | 40 × 40 × 20 cm |
| Displacement |
80 cc/rev |
| Rated Pressure |
30 MPa (4351 psi) |
| Max Pressure |
35 MPa (5076 psi) |
| Rated Speed |
2200 r/min |
| Max Speed |
3000 r/min |
| Rotation |
R: Right (clockwise) |
| Structure |
External Gear Pump |
| Material |
Cast Iron |
| Flange Version |
B-Square Flange, ISO-4 Mounting Holes |
| Shaft Type |
H: Rectangle Spline |
| Product Model |
LB-80 80 cc/rev |
Industrial Hydraulic Gear Pump 63cc/rev JHP2063, Counter-Clockwise Operation
In stock
| Weight | 19.00 kg |
|---|---|
| Dimensions | 25 × 22 × 22 cm |
| Displacement |
63 cc/rev |
| Rated Pressure |
20 MPa (2900 psi) |
| Max Pressure |
23 MPa (3335 psi) |
| Rated Speed |
2200 r/min |
| Max Speed |
2500 r/min |
| Rotation |
L: Left (counter-clockwise) |
| Structure |
External Gear Pump |
| Material |
Cast Iron |
| Flange Version |
B-Square Flange |
| Shaft Type |
H: Rectangle Spline, P: Plain Key |
| Product Model |
JHP2063 63 cc/rev |
Manufacturer of 80 cc/rev Hydraulic Gear Pumps (JHP2080-2080 L) – Global Supply for Wholesalers & Traders
In stock
| Weight | 34.00 kg |
|---|---|
| Dimensions | 48 × 18 × 16 cm |
| Displacement |
80 cc/rev |
| Rated Pressure |
16 MPa (2320 psi) |
| Max Pressure |
18 MPa (2610 psi) |
| Rated Speed |
2200 r/min |
| Max Speed |
2500 r/min |
| Rotation |
L: Left (counter-clockwise) |
| Structure |
External Gear Pump |
| Material |
Cast Iron |
| Flange Version |
B-Square Flange |
| Shaft Type |
H: Rectangle Spline, P: Plain Key |
| Product Model |
JHP2080-2080 80 cc/rev |

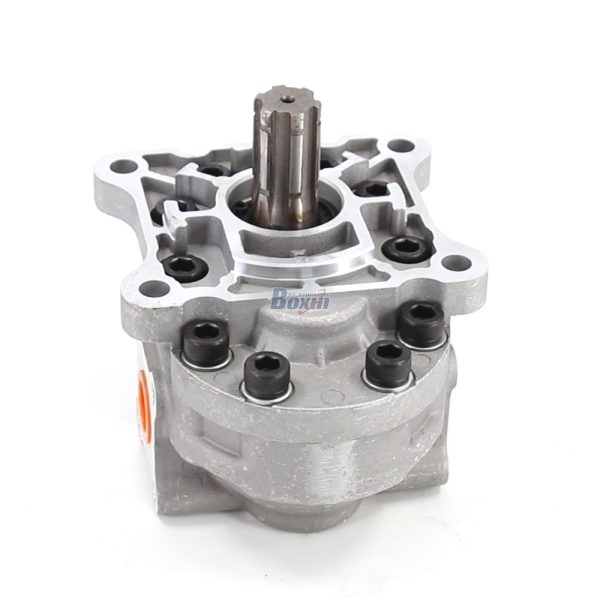

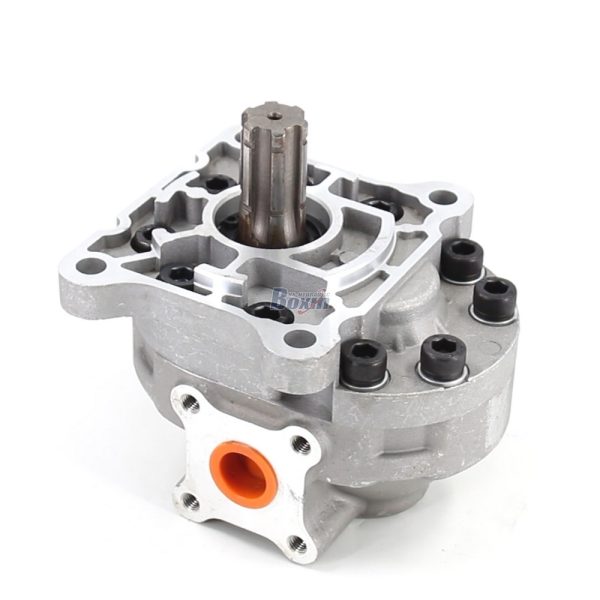

NSH32-M 32cc/rev Hydraulic Gear Pump (Counter-Clockwise) – Manufacturing, OEM, Private Label Solutions
In stock
| Weight | 5.00 kg |
|---|---|
| Dimensions | 19 × 15 × 22 cm |
| Displacement |
32 cc/rev |
| Rated Pressure |
16 MPa (2320 psi) |
| Max Pressure |
20 MPa (2900 psi) |
| Rated Speed |
2400 r/min |
| Max Speed |
3600 r/min |
| Rotation |
L: Left (counter-clockwise) |
| Structure |
External Gear Pump |
| Material |
Aluminium |
| Flange Version |
B-Square Flange |
| Shaft Type |
X: Involute Spline |
| Product Model |
NSH32-M 32 cc/rev |

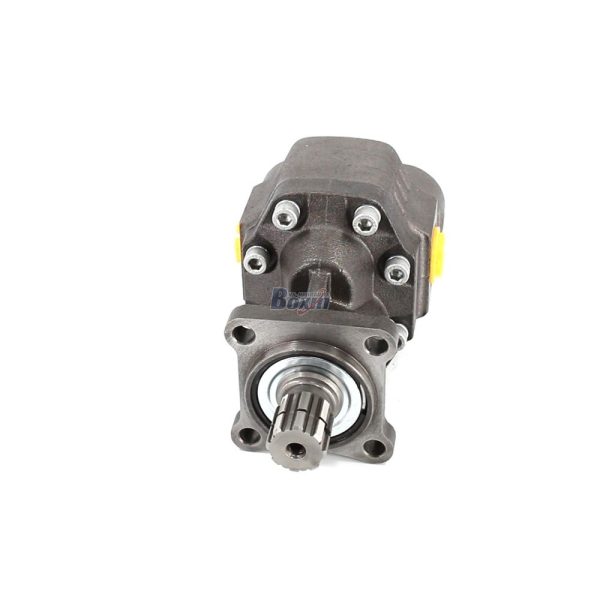

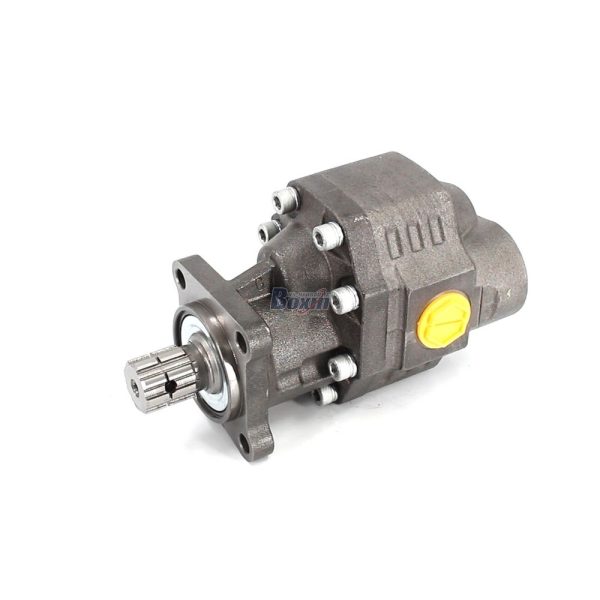

Precision Manufactured CBHW-ISO-100-Y Bidirectional Hydraulic Pumps | Private Label & Custom Solutions
In stock
| Weight | 16.70 kg |
|---|---|
| Dimensions | 34 × 17 × 17 cm |
| Displacement |
100 cc/rev |
| Rated Pressure |
20 MPa (2900 psi) |
| Max Pressure |
23 MPa (3335 psi) |
| Rated Speed |
2200 r/min |
| Max Speed |
2500 r/min |
| Rotation |
/: (Bidirectional) |
| Structure |
External Gear Pump, Internal Gear Pump |
| Material |
Cast Iron |
| Flange Version |
ISO-4 Mounting Holes, UNI-3 Mounting Holes |
| Shaft Type |
H: Rectangle Spline |
| Product Model |
CBHW-ISO-100-Y 100 cc/rev |
Our Products and Services
Here's what we can do
