All productsShowing all 8 results
4-Spool Monoblock Solenoid Valve, 10.5 GPM Flow Rate, P40-S Hydraulic Component
In stock
| Weight | 12.70 kg |
|---|---|
| Dimensions | 30 × 30 × 16 cm |
| Control Method |
solenoid |
| Section |
4 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
40 L/min (10.5 US gpm) |
| Max Pressure |
250 bar (3600 psi) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Spool |
4 Spool |
| Inlet Port |
G1/2 |
| Outlet Port |
G1/2 |
| Port Size |
G3/8 |
| Product Model |
P40-S Solenoid |
Custom & Private Label Hydraulic Gear Pumps: BF62M 63cc/rev Bidirectional Available
In stock
| Weight | 19.50 kg |
|---|---|
| Dimensions | 34 × 20 × 17 cm |
| Displacement |
63 cc/rev |
| Rated Pressure |
20 MPa (2900 psi) |
| Max Pressure |
25 MPa (3625 psi) |
| Rated Speed |
2000 r/min |
| Max Speed |
2500 r/min |
| Rotation |
/: (Bidirectional) |
| Structure |
Internal Gear Pump, External Gear Pump |
| Material |
Cast Iron |
| Flange Version |
UNI-3 Mounting Holes, A-Oval Flange |
| Shaft Type |
H: Rectangle Spline, P: Plain Key |
| Product Model |
BF62M 63 cc/rev |
Custom JHP2100-2080-1016 L: Left Hydraulic Gear Pump (100cc/rev) – Private Label & Customization for Global Distributors
In stock
| Weight | 40.00 kg |
|---|---|
| Dimensions | 57 × 18 × 16 cm |
| Displacement |
100 cc/rev |
| Rated Pressure |
16 MPa (2320 psi) |
| Max Pressure |
18 MPa (2610 psi) |
| Rated Speed |
2200 r/min |
| Max Speed |
2500 r/min |
| Rotation |
L: Left (counter-clockwise) |
| Structure |
External Gear Pump |
| Material |
Cast Iron |
| Flange Version |
B-Square Flange |
| Shaft Type |
H: Rectangle Spline, P: Plain Key |
| Product Model |
JHP2100-2080-1016 100 cc/rev |
Flow Diverter Valve 15.8 GPM Manual 1 Spool HSDV34 – Manufacturing, OEM, Private Label, Custom & Wholesale
In stock
| Weight | 1.60 kg |
|---|---|
| Dimensions | 21 × 9 × 12 cm |
| Control Method |
manual |
| Section |
1 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
90 L/min (23.8 gpm) |
| Max Pressure |
200 bar (20 MPa) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +60°C (-40°F to +140°F) |
| Spool |
1 Spool |
| Inlet Port |
G1/2 |
| Outlet Port |
G1/2 |
| Port Size |
G1/2 |
| Product Model |
HSDV34 Manual |

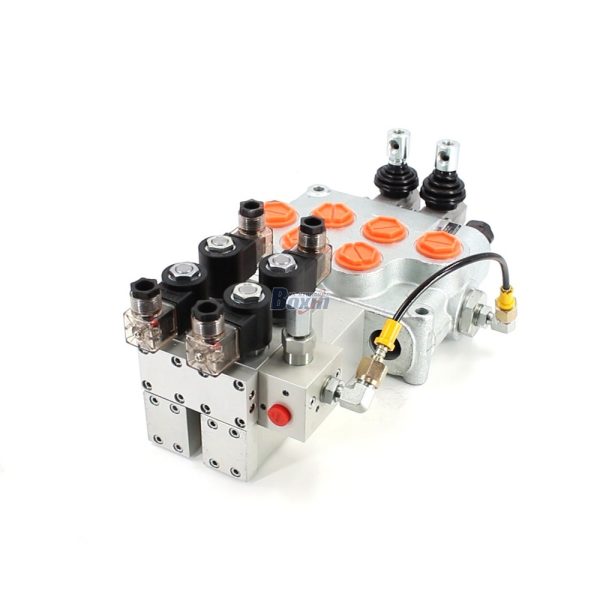

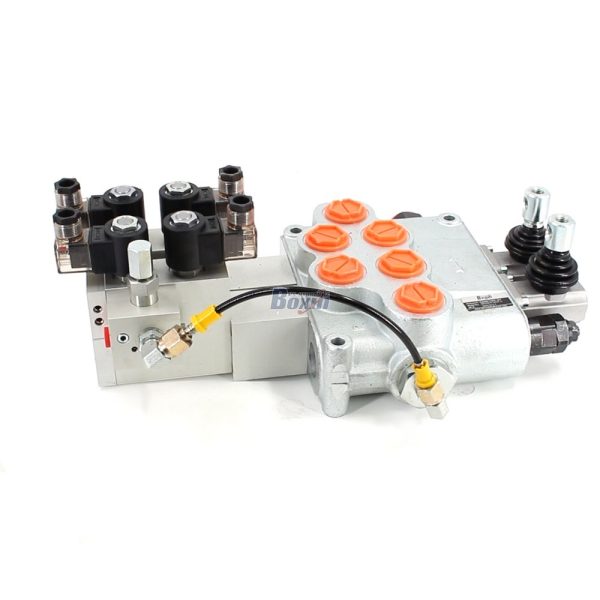

Hydraulic Monoblock Valves (SD18 Series, Electric 2 Spool, 42.2 GPM) – Private Label & Bulk Orders Available
In stock
| Weight | 22.50 kg |
|---|---|
| Dimensions | 21 × 47 × 32 cm |
| Control Method |
Electric |
| Section |
2 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
160 L/min (42.2 US gpm) |
| Max Pressure |
315 bar (4600 psi) |
| Operating Viscosity Range |
12 – 400 mm²/s (12 cSt to 400 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Inlet Port |
G1 |
| Outlet Port |
G1 |
| Port Size |
G1 |
| Product Model |
SD18 Electric |
Hydraulic Sectional Directional Valve 15.8 GPM Solenoid 6 Spool DCV58: OEM & Private Label Production
In stock
| Weight | 29.00 kg |
|---|---|
| Dimensions | 37 × 34 × 14 cm |
| Control Method |
solenoid |
| Section |
6 Section |
| Structure Type |
Sectional valve |
| Rated Flow |
60 L/min (15.8 US gpm) |
| Max Pressure |
200 bar (2900 psi) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Spool |
6 Spool |
| Inlet Port |
G1/2 |
| Outlet Port |
G1/2 |
| Port Size |
G1/2 |
| Product Model |
DCV58 Solenoid |
Our Products and Services
Here's what we can do
Our main products include Directional Control Valves, Gear Pumps, Steering Equipment, and Power Units, with over 500 models that are widely used in various industries such as construction, sanitation, drilling, and mining. In addition to our standard product offerings, we also support OEM/ODM services, allowing us to customize hydraulic products according to our customers' specific needs and requirements. Our professional R&D team and advanced production technology ensure the quality and timely delivery of our products, while our comprehensive pre-sales and after-sales services help our customers improve their product competitiveness.
