DH25 52 GPM Manual Flow Diverter Valve – Seeking Distributors, Wholesalers & Agents
In stock
| Weight | 7.00 kg |
|---|---|
| Dimensions | 25 × 12 × 15 cm |
| Control Method |
manual |
| Section |
1 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
200 L/min (52 US gpm) |
| Max Pressure |
315 bar (4600 psi) |
| Operating Viscosity Range |
12 – 400 mm²/s (12 cSt to 400 cSt) |
| Ambient Temperature Range |
-20°C to +80°C (-4°F to +176°F) |
| Inlet Port |
G1 |
| Outlet Port |
G1 |
| Port Size |
G1 |
| Product Model |
DH25 Manual |
Global Supplier of Steering Unit 101S-5T-100-PV80 (100 ml/r, 10 L/min) – Wholesale & Distribution Partners
In stock
| Weight | 8.50 kg |
|---|---|
| Dimensions | 13 × 18 × 20 cm |
| Displacement |
100 ml/r |
| Rated flow |
10 L/min |
| Max input pressure |
17.5 Mpa |
| Max Cont Back pressure |
2.5 Mpa |
| Material |
Cast Iron |
| Valve Block |
Customizable |
| Shock Valves Pressure Settings |
12 Mpa,13 Mpa,14 Mpa,16 Mpa,18 Mpa,20 Mpa,21 Mpa,22 Mpa,23.5 Mpa |
| Relief Valve Pressure Settings |
6 Mpa,7 Mpa,8 Mpa,10 Mpa,12 Mpa,14 Mpa,15 Mpa,16 Mpa,17.5 Mpa |
| Max input speed |
100rpm,75rpm |
| Product Model |
101S-5T-100-PV80 100 ml/r |

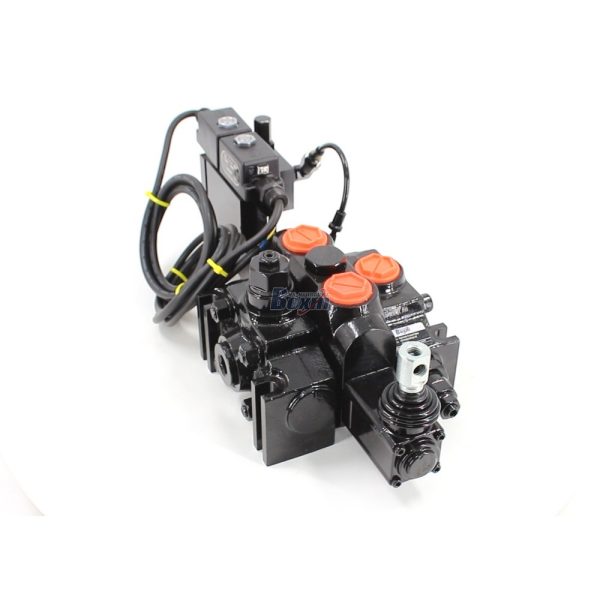

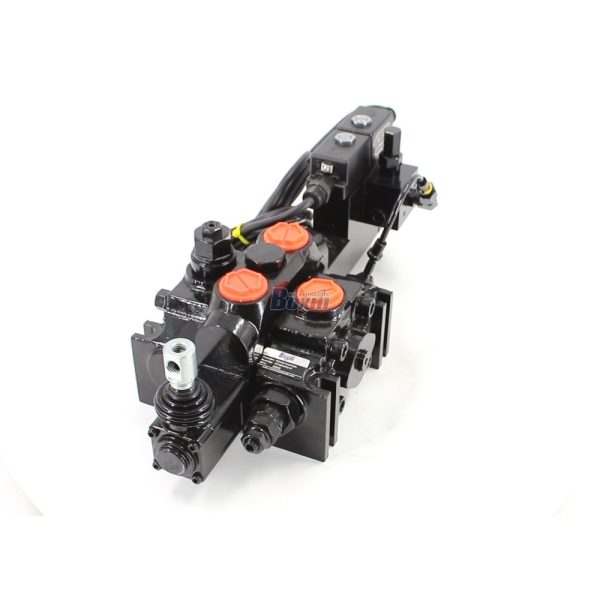

Global Supply & Partnership for DCV200-FB: 52 GPM Electro-Hydraulic 1 Spool Sectional Directional Valves
In stock
| Weight | 24.00 kg |
|---|---|
| Dimensions | 45 × 25 × 18 cm |
| Control Method |
electro-hydraulic |
| Section |
1 Section |
| Structure Type |
Sectional valve |
| Rated Flow |
200 L/min (52 US gpm) |
| Max Pressure |
315 bar (4600 psi) |
| Operating Viscosity Range |
12 – 400 mm²/s (12 cSt to 400 cSt) |
| Ambient Temperature Range |
-40°C to +60°C (-40°F to +140°F) |
| Inlet Port |
G1 |
| Outlet Port |
G1 |
| Port Size |
G1 |
| Product Model |
DCV200-FB Electro-hydraulic |
Hydraulic Joystick 4.2 GPM 2 Spool Control Valve – XDF-2 Series for Equipment
In stock
| Weight | 4.00 kg |
|---|---|
| Dimensions | 22 × 17 × 37 cm |
| Control Method |
Joystick |
| Spool |
2 Spool |
| Rated Flow |
16 L/min (4.2 US gpm) |
| Max Pressure |
6 MPa (870 psi) |
| Structure Type |
Monoblock valve |
| Inlet Port |
G1/4 |
| Outlet Port |
G1/4 |
| Port Size |
G1/4 |
| Section |
2 Section, 3 Section |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Product Model |
XDF-2 Joystick |
OEM/ODM JHP2080-2080 L 80 cc/rev Hydraulic Gear Pumps – Custom & Private Label Solutions Available
In stock
| Weight | 34.00 kg |
|---|---|
| Dimensions | 48 × 18 × 16 cm |
| Displacement |
80 cc/rev |
| Rated Pressure |
16 MPa (2320 psi) |
| Max Pressure |
18 MPa (2610 psi) |
| Rated Speed |
2200 r/min |
| Max Speed |
2500 r/min |
| Rotation |
L: Left (counter-clockwise) |
| Structure |
External Gear Pump |
| Material |
Cast Iron |
| Flange Version |
B-Square Flange |
| Shaft Type |
H: Rectangle Spline, P: Plain Key |
| Product Model |
JHP2080-2080 80 cc/rev |
Quality Hydraulic Gear Pump 32cc/rev (Left) NSH32-M – Global Wholesale & Custom Supply
In stock
| Weight | 5 kg |
|---|---|
| Dimensions | 19 × 15 × 22 cm |
| Displacement |
32 cc/rev |
| Rated Pressure |
16 MPa (2320 psi) |
| Max Pressure |
20 MPa (2900 psi) |
| Rated Speed |
2400 r/min |
| Max Speed |
3600 r/min |
| Rotation |
L: Left (counter-clockwise) |
| Structure |
External Gear Pump |
| Material |
Aluminium |
| Flange Version |
B-Square Flange |
| Shaft Type |
X: Involute Spline |
| Product Model |
NSH32-M 32 cc/rev |
Our Products and Services
Here's what we can do
Our main products include Directional Control Valves, Gear Pumps, Steering Equipment, and Power Units, with over 500 models that are widely used in various industries such as construction, sanitation, drilling, and mining. In addition to our standard product offerings, we also support OEM/ODM services, allowing us to customize hydraulic products according to our customers' specific needs and requirements. Our professional R&D team and advanced production technology ensure the quality and timely delivery of our products, while our comprehensive pre-sales and after-sales services help our customers improve their product competitiveness.
