All productsShowing all 10 results
10.5 GPM 2 Spool Solenoid Directional Valve (P40-DKL) – Global Hydraulics Manufacturer & Distributor
In stock
| Weight | 6.20 kg |
|---|---|
| Dimensions | 31 × 18 × 17 cm |
| Control Method |
solenoid |
| Section |
2 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
40 L/min (10.5 US gpm) |
| Max Pressure |
250 bar (25 MPa) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| spool |
2 Spool |
| Product model |
P40-DKL Solenoid |
10.5 GPM 2-Spool Solenoid Monoblock Directional Valve (P40) – Manufacturer & Distributor
In stock
| Weight | 6.20 kg |
|---|---|
| Dimensions | 30 × 18 × 12 cm |
| Control Method |
solenoid |
| Section |
2 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
40 L/min (10.5 US gpm) |
| Max Pressure |
250 bar (25 MPa) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Spool |
2 Spool |
| Product Model |
P40 Solenoid |
Bidirectional Hydraulic Gear Pump 110 cc/rev – CBHST1-ISO-110 Series
In stock
| Weight | 19.50 kg |
|---|---|
| Dimensions | 34 × 17 × 17 cm |
| Displacement |
110 cc/rev |
| Rated Pressure |
22 MPa (3190 psi) |
| Max Pressure |
25 MPa (3625 psi) |
| Rated Speed |
2000 r/min |
| Max Speed |
2500 r/min |
| Rotation |
/: (Bidirectional) |
| Structure |
External Gear Pump |
| Material |
Cast Iron |
| Flange Version |
ISO-4 Mounting Holes |
| Shaft Type |
H: Rectangle Spline |
| Product Model |
CBHST1-ISO-110 110 cc/rev |
BXHS Hydraulic Valves: 21.2 GPM Monoblock Directional Valve (P80J) – Distributor & Wholesaler Inquiries Welcome
In stock
| Weight | 5.00 kg |
|---|---|
| Dimensions | 26 × 15 × 11 cm |
| Control Method |
manual |
| Section |
1 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
80 L/min (21.2 US gpm) |
| Max Pressure |
315 bar (31.5 MPa) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| spool |
1 Spool |
| Product model |
P80J Manual |
Hydraulic Control Valve 39.6 GPM 1 Spool Pneumatic QFCK-F20L – Manufacturer, OEM, ODM, Wholesale & Distributor
In stock
| Weight | 6.50 kg |
|---|---|
| Dimensions | 25 × 20 × 14 cm |
| Control Method |
pneumatic |
| Section |
1 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
150 L/min (39.6 US gpm) |
| Max Pressure |
210 bar (3045 psi) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +60°C (-40°F to +140°F) |
| Spool |
1 Spool |
| Product Model |
QFCK-F20L-01 Pneumatic |
Manufacturing & Supply of Steering Unit 80 ml/r, 8 L/min for Worldwide Distributors and Agents
In stock
| Weight | 6.00 kg |
|---|---|
| Dimensions | 11 × 11 × 16 cm |
| Displacement |
80 ml/r |
| Rated flow |
8 L/min |
| Max input pressure |
17.5 Mpa |
| Max Cont Back pressure |
2.5 Mpa |
| Material |
Cast Iron |
| Valve Block |
Customizable |
| Shock Valves Pressure Settings |
12 Mpa,13 Mpa,14 Mpa,16 Mpa,18 Mpa,20 Mpa,21 Mpa,22 Mpa,23.5 Mpa |
| Relief Valve Pressure Settings |
6 Mpa,7 Mpa,8 Mpa,10 Mpa,12 Mpa,14 Mpa,15 Mpa,16 Mpa,17.5 Mpa |
| Max input speed |
100rpm,75rpm |
| Product Model |
101S-5-80 80 ml/r |

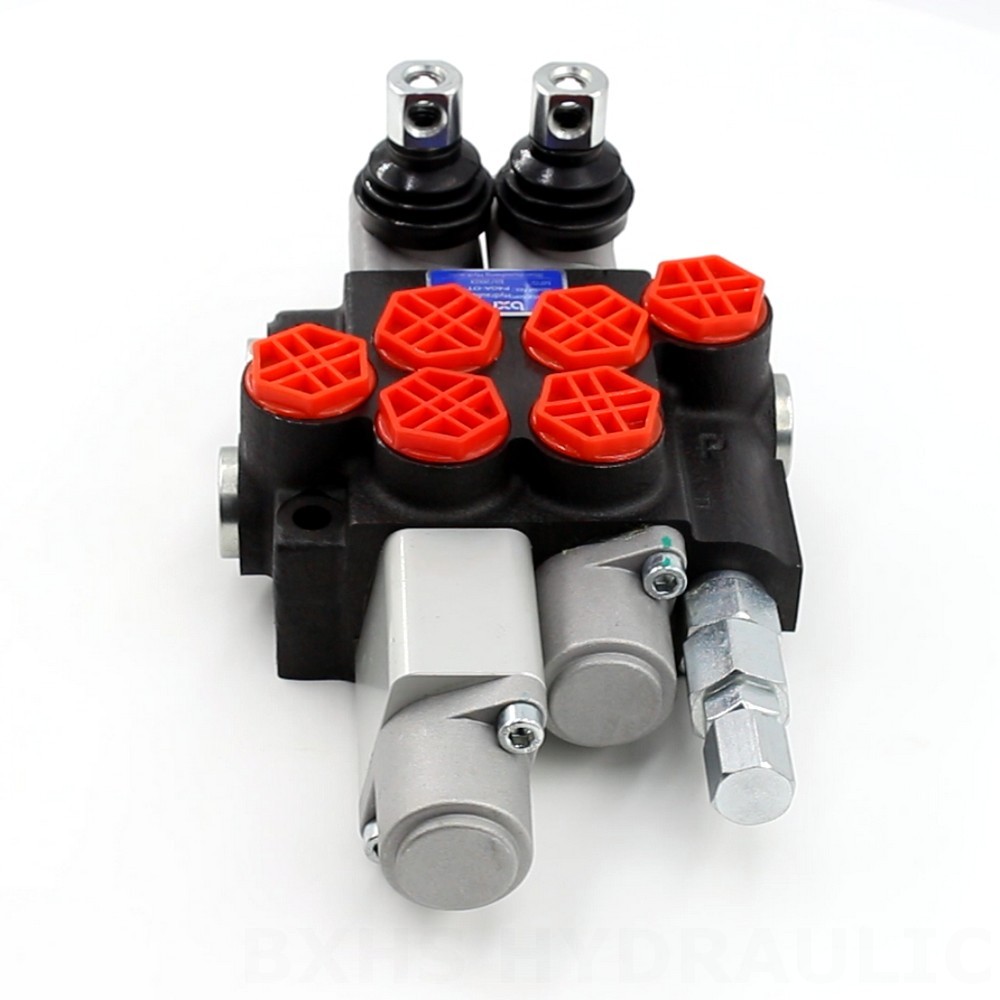

Monoblock Directional Valve 10.5 GPM 2 Spool Manual P40A – Manufacturing, OEM, Private Label, Custom & Wholesale
In stock
| Weight | 4.80 kg |
|---|---|
| Dimensions | 22 × 17 × 12 cm |
| Control Method |
manual |
| Section |
2 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
40 L/min (10.5 US gpm) |
| Max Pressure |
250 bar (25 MPa) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| spool |
2 Spool |
| Product model |
P40A Manual |
Monoblock Directional Valve 21.2 GPM 3 Spool Cable P80 – Manufacturing, OEM, Private Label, Custom & Wholesale
In stock
| Weight | 9.60 kg |
|---|---|
| Dimensions | 22 × 35 × 10 cm |
| Control Method |
cable |
| Section |
3 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
80 L/min (21.2 US gpm) |
| Max Pressure |
315 bar (31.5 MPa) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Spool |
3 Spool |
| Product Model |
P80 Cable |
Monoblock Directional Valve 21.2 GPM 3 Spool Solenoid P80 – Manufacturing, OEM, Private Label, Custom & Wholesale
In stock
| Weight | 13.00 kg |
|---|---|
| Dimensions | 33 × 28 × 11 cm |
| Control Method |
solenoid |
| Section |
3 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
80 L/min (21.2 US gpm) |
| Max Pressure |
315 bar (31.5 MPa) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Spool |
3 Spool |
| Product Model |
P80 Solenoid |
Sectional Directional Valve 15.8 GPM 2 Spool Manual DCV60 – Manufacturing, OEM, Private Label, Custom & Wholesale
In stock
| Weight | 11.00 kg |
|---|---|
| Dimensions | 30 × 25 × 18 cm |
| Control Method |
manual |
| Section |
2 Section |
| Structure Type |
Sectional valve |
| Rated Flow |
60 L/min (15.8 US gpm) |
| Max Pressure |
350 bar (35 MPa) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Spool |
2 Spool |
| Product Model |
DCV60 Manual |
Our Products and Services
Here's what we can do
