All productsShowing 1–18 of 38 results

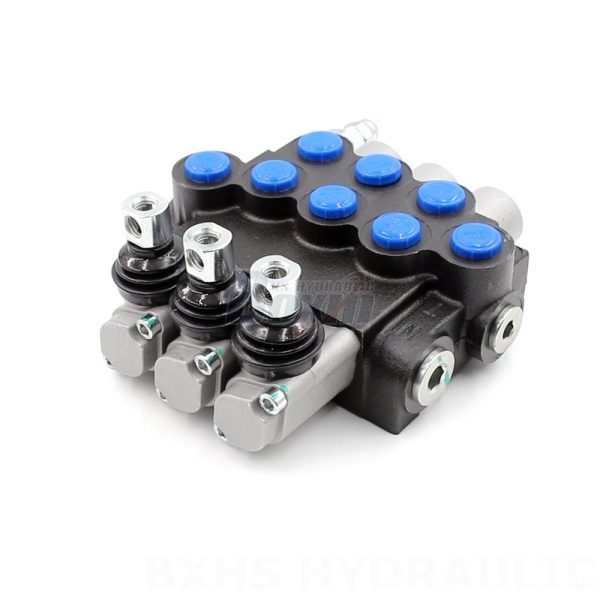

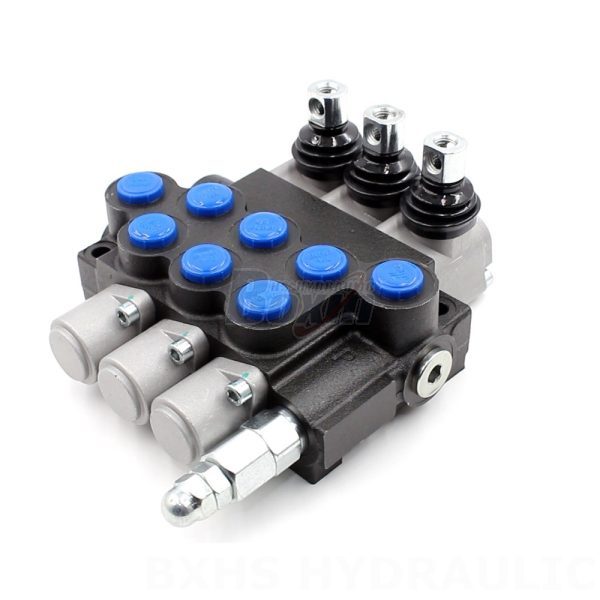

10.5 GPM 3-Spool Manual Directional Valve (P40-G38-G12-OT) – Manufacturer, Distributor & Wholesale Opportunities
In stock
| Weight | 6.60 kg |
|---|---|
| Dimensions | 24 × 21 × 13 cm |
| Control Method |
manual |
| Section |
3 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
40 L/min (10.5 US gpm) |
| Max Pressure |
250 bar (3600 psi) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| spool |
3 Spool |
| Product model |
P40-G38-G12-OT Manual |
21.2 GPM Electro-hydraulic 5 Spool Monoblock Directional Valve (P80 Model)
In stock
| Weight | 23.00 kg |
|---|---|
| Dimensions | 52 × 42 × 20 cm |
| Control Method |
electro-hydraulic |
| Section |
5 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
80 L/min (21.2 US gpm) |
| Max Pressure |
250 bar (3600 psi) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Spool |
5 Spool |
| Inlet Port |
G1/2 |
| Outlet Port |
G3/4 |
| Port Size |
G1/2 |
| Product Model |
P80 Electro-hydraulic |
Bidirectional Hydraulic Gear Pump 82 cc/rev CBHC-2082 – Manufacturing, Private Label & Supply
In stock
| Weight | 16.30 kg |
|---|---|
| Dimensions | 22 × 22 × 25 cm |
| Displacement |
80 cc/rev |
| Rated Pressure |
20 MPa (2900 psi) |
| Max Pressure |
25 MPa (3625 psi) |
| Rated Speed |
2200 r/min |
| Max Speed |
2500 r/min |
| Rotation |
/: (Bidirectional) |
| Structure |
External Gear Pump |
| Material |
Cast Iron |
| Flange Version |
SAE Flange |
| Shaft Type |
H: Rectangle Spline |
| Product Model |
CBHC-2082 80 cc/rev |
CBHL-2000 Bidirectional Hydraulic Gear Pump – 50 cc/rev Displacement for Industrial Use
In stock
| Weight | 15.00 kg |
|---|---|
| Dimensions | 40 × 19.5 × 20 cm |
| Displacement |
50 cc/rev |
| Rated Pressure |
25 MPa (3625 psi) |
| Max Pressure |
28 MPa (4061 psi) |
| Rated Speed |
2200 r/min |
| Max Speed |
2500 r/min |
| Rotation |
/: (Bidirectional) |
| Structure |
External Gear Pump |
| Material |
Cast Iron |
| Flange Version |
SAE Flange |
| Shaft Type |
H: Rectangle Spline |
| Product Model |
CBHL-2000 50 cc/rev |
Custom & Private Label Hydraulic Gear Pumps: BF62M 63cc/rev Bidirectional Available
In stock
| Weight | 19.50 kg |
|---|---|
| Dimensions | 34 × 20 × 17 cm |
| Displacement |
63 cc/rev |
| Rated Pressure |
20 MPa (2900 psi) |
| Max Pressure |
25 MPa (3625 psi) |
| Rated Speed |
2000 r/min |
| Max Speed |
2500 r/min |
| Rotation |
/: (Bidirectional) |
| Structure |
Internal Gear Pump, External Gear Pump |
| Material |
Cast Iron |
| Flange Version |
UNI-3 Mounting Holes, A-Oval Flange |
| Shaft Type |
H: Rectangle Spline, P: Plain Key |
| Product Model |
BF62M 63 cc/rev |
Customizable Hydraulic Steering Unit 100 ml/r, 10 L/min Solutions – Model 101S-5T-100-PV80 for Global Market
In stock
| Weight | 8.50 kg |
|---|---|
| Dimensions | 13 × 18 × 20 cm |
| Displacement |
100 ml/r |
| Rated flow |
10 L/min |
| Max input pressure |
17.5 Mpa |
| Max Cont Back pressure |
2.5 Mpa |
| Material |
Cast Iron |
| Valve Block |
Customizable |
| Shock Valves Pressure Settings |
12 Mpa,13 Mpa,14 Mpa,16 Mpa,18 Mpa,20 Mpa,21 Mpa,22 Mpa,23.5 Mpa |
| Relief Valve Pressure Settings |
6 Mpa,7 Mpa,8 Mpa,10 Mpa,12 Mpa,14 Mpa,15 Mpa,16 Mpa,17.5 Mpa |
| Max input speed |
100rpm,75rpm |
| Product Model |
101S-5T-100-PV80 100 ml/r |
DM130 Pneumatic Monoblock Valve Wholesale – 34.3 GPM Directional Control for Distributors
In stock
| Weight | 5.00 kg |
|---|---|
| Dimensions | 26 × 16 × 11 cm |
| Control Method |
pneumatic |
| Section |
1 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
130 L/min (34.3 US gpm) |
| Max Pressure |
315 bar (31.5 MPa) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Spool |
1 Spool |
| Inlet Port |
M30×1.5 |
| Outlet Port |
G3/4 |
| Port Size |
G3/4 |
| Product Model |
DM130 Pneumatic |
Flow Diverter Valve 13.2 GPM 2 Spool Solenoid HSV06 – Manufacturing, OEM, Private Label, Custom & Wholesale
In stock
| Weight | 6.00 kg |
|---|---|
| Dimensions | 17 × 19 × 10 cm |
| Control Method |
solenoid |
| Section |
2 Section |
| Structure Type |
Sectional valve |
| Rated Flow |
50 L/min (13.2 gpm) |
| Max Pressure |
180 bar (2600 psi) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-20°C to +80°C (-4°F to +176°F) |
| Spool |
2 Spool |
| Product Model |
HSV06 Solenoid |

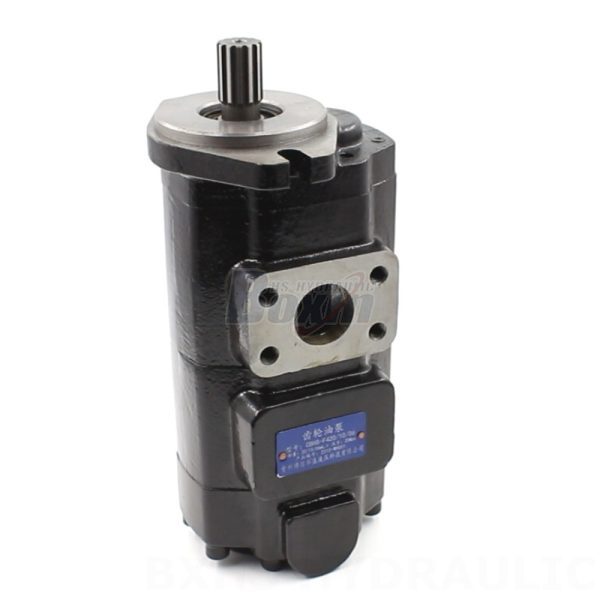

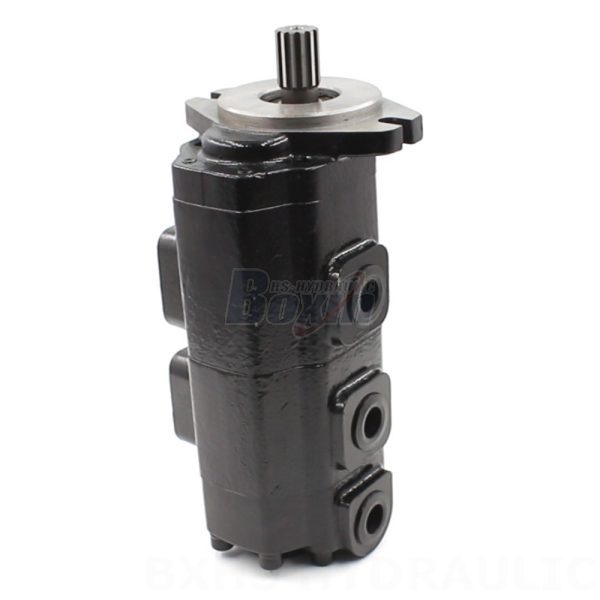

Hydraulic Gear Pump 20 cc/rev CBHS-F420 – Manufacturer, OEM, ODM, Wholesale & Distributor
In stock
| Weight | 7.50 kg |
|---|---|
| Dimensions | 27 × 33 × 25 cm |
| Displacement |
20 cc/rev |
| Rated Pressure |
20 MPa (2900 psi) |
| Max Pressure |
25 MPa (3625 psi) |
| Rated Speed |
2200 r/min |
| Max Speed |
3000 r/min |
| Rotation |
L: Left (counter-clockwise) , R: Right (clockwise) |
| Structure |
Cam Plate Type |
| Flange Version |
A-Oval Flange, B-Square Flange |
| Shaft Type |
H: Rectangle Spline |
| Product model |
CBHS-F420 20 cc/rev |
Hydraulic Joystick 4.2 GPM 2 Spool Control Valve – XDF-2 Series for Equipment
In stock
| Weight | 4.00 kg |
|---|---|
| Dimensions | 22 × 17 × 37 cm |
| Control Method |
Joystick |
| Spool |
2 Spool |
| Rated Flow |
16 L/min (4.2 US gpm) |
| Max Pressure |
6 MPa (870 psi) |
| Structure Type |
Monoblock valve |
| Inlet Port |
G1/4 |
| Outlet Port |
G1/4 |
| Port Size |
G1/4 |
| Section |
2 Section, 3 Section |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Product Model |
XDF-2 Joystick |
Our Products and Services
Here's what we can do
Our main products include Directional Control Valves, Gear Pumps, Steering Equipment, and Power Units, with over 500 models that are widely used in various industries such as construction, sanitation, drilling, and mining. In addition to our standard product offerings, we also support OEM/ODM services, allowing us to customize hydraulic products according to our customers' specific needs and requirements. Our professional R&D team and advanced production technology ensure the quality and timely delivery of our products, while our comprehensive pre-sales and after-sales services help our customers improve their product competitiveness.
