CBHL-2000 Bidirectional Hydraulic Gear Pump – 50 cc/rev Displacement for Industrial Use
In stock
| Weight | 15.00 kg |
|---|---|
| Dimensions | 40 × 19.5 × 20 cm |
| Displacement |
50 cc/rev |
| Rated Pressure |
25 MPa (3625 psi) |
| Max Pressure |
28 MPa (4061 psi) |
| Rated Speed |
2200 r/min |
| Max Speed |
2500 r/min |
| Rotation |
/: (Bidirectional) |
| Structure |
External Gear Pump |
| Material |
Cast Iron |
| Flange Version |
SAE Flange |
| Shaft Type |
H: Rectangle Spline |
| Product Model |
CBHL-2000 50 cc/rev |

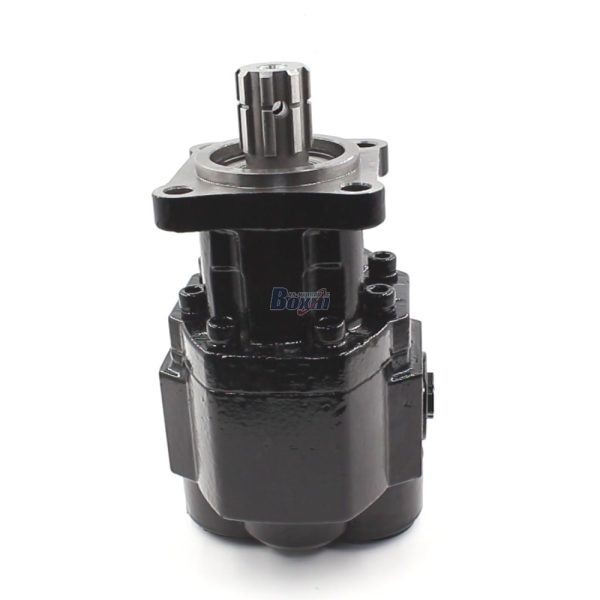

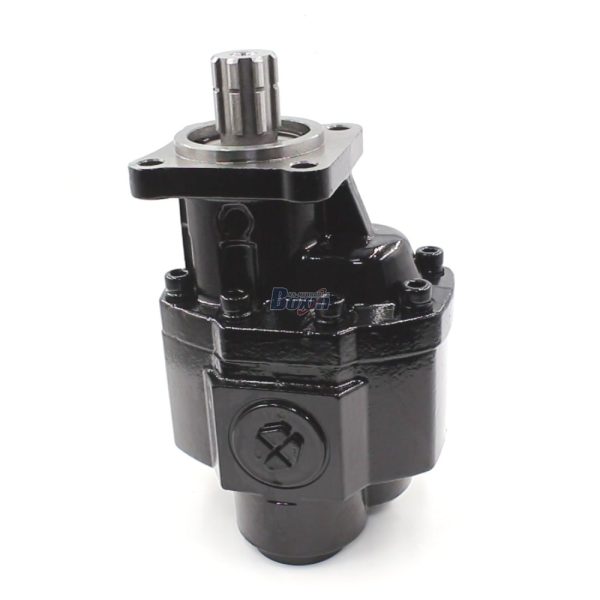

Manufacturer of 110 cc/rev Bidirectional Hydraulic Gear Pumps – OEM, Wholesale & Custom Options
In stock
| Weight | 19.50 kg |
|---|---|
| Dimensions | 34 × 17 × 17 cm |
| Displacement |
110 cc/rev |
| Rated Pressure |
22 MPa (3190 psi) |
| Max Pressure |
25 MPa (3625 psi) |
| Rated Speed |
2000 r/min |
| Max Speed |
2500 r/min |
| Rotation |
/: (Bidirectional) |
| Structure |
External Gear Pump |
| Material |
Cast Iron |
| Flange Version |
ISO-4 Mounting Holes |
| Shaft Type |
H: Rectangle Spline |
| Product Model |
CBHST1-ISO-110 110 cc/rev |

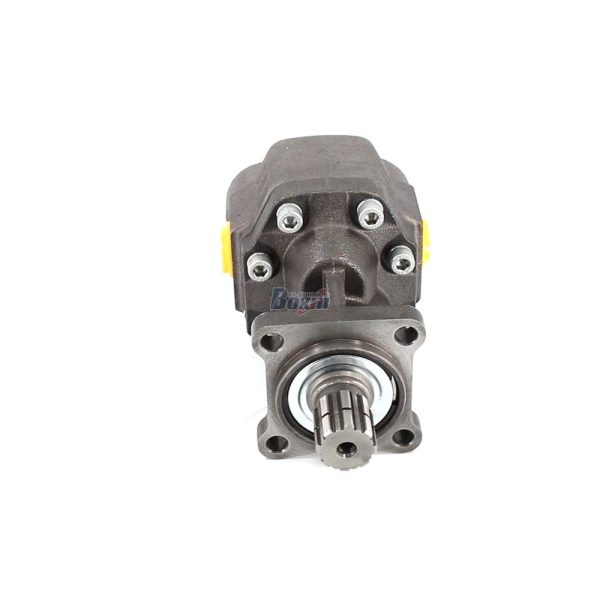

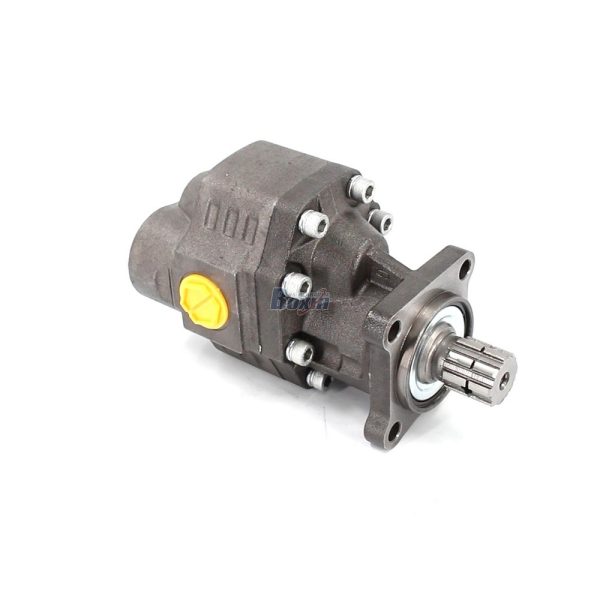

Wholesale & OEM Hydraulic Gear Pump 100 cc/rev Bidirectional | Manufacturer Direct Supply
In stock
| Weight | 16.70 kg |
|---|---|
| Dimensions | 34 × 17 × 17 cm |
| Displacement |
100 cc/rev |
| Rated Pressure |
20 MPa (2900 psi) |
| Max Pressure |
23 MPa (3335 psi) |
| Rated Speed |
2200 r/min |
| Max Speed |
2500 r/min |
| Rotation |
/: (Bidirectional) |
| Structure |
External Gear Pump, Internal Gear Pump |
| Material |
Cast Iron |
| Flange Version |
ISO-4 Mounting Holes, UNI-3 Mounting Holes |
| Shaft Type |
H: Rectangle Spline |
| Product Model |
CBHW-ISO-100-Y 100 cc/rev |
Our Products and Services
Here's what we can do
Our main products include Directional Control Valves, Gear Pumps, Steering Equipment, and Power Units, with over 500 models that are widely used in various industries such as construction, sanitation, drilling, and mining. In addition to our standard product offerings, we also support OEM/ODM services, allowing us to customize hydraulic products according to our customers' specific needs and requirements. Our professional R&D team and advanced production technology ensure the quality and timely delivery of our products, while our comprehensive pre-sales and after-sales services help our customers improve their product competitiveness.
