All productsShowing all 16 results
10.5 GPM Manual 2 Spool Hydraulic Monoblock Directional Control Valve
In stock
| Weight | 5.00 kg |
|---|---|
| Dimensions | 23 × 18 × 11 cm |
| Control Method |
manual |
| Section |
2 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
40 L/min (10.5 US gpm) |
| Max Pressure |
250 bar (25 MPa) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Spool |
2 Spool |
| Inlet Port |
G1/2 |
| Outlet Port |
G1/2 |
| Port Size |
G3/8 |
| Product Model |
P40-XNHJ Manual |
4-Spool Monoblock Solenoid Valve, 10.5 GPM Flow Rate, P40-S Hydraulic Component
In stock
| Weight | 12.70 kg |
|---|---|
| Dimensions | 30 × 30 × 16 cm |
| Control Method |
solenoid |
| Section |
4 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
40 L/min (10.5 US gpm) |
| Max Pressure |
250 bar (3600 psi) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Spool |
4 Spool |
| Inlet Port |
G1/2 |
| Outlet Port |
G1/2 |
| Port Size |
G3/8 |
| Product Model |
P40-S Solenoid |
Customizable 1 Spool Monoblock Directional Valves – DM130 Series for Global Partners
In stock
| Weight | 5.00 kg |
|---|---|
| Dimensions | 26 × 16 × 11 cm |
| Control Method |
pneumatic |
| Section |
1 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
130 L/min (34.3 US gpm) |
| Max Pressure |
315 bar (31.5 MPa) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Spool |
1 Spool |
| Inlet Port |
M30×1.5 |
| Outlet Port |
G3/4 |
| Port Size |
G3/4 |
| Product Model |
DM130 Pneumatic |
Global Partnership Opportunity: RD5200-OU2 Manual 2 Spool Hydraulic Control Valve 26.5 GPM
In stock
| Weight | 11.00 kg |
|---|---|
| Dimensions | 25 × 28 × 11 cm |
| Control Method |
manual |
| Section |
2 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
100 L/min (26.4 gpm) |
| Max Pressure |
315 bar (4600 psi) |
| Operating Viscosity Range |
12 – 400 mm²/s (12 cSt to 400 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Inlet Port |
G3/4 |
| Outlet Port |
G3/4 |
| Port Size |
G1/2 |
| Min Viscosit |
12 mm2/s |
| Kick out set pressurt |
70-140 bar |
| Product Model |
RD5200-OU2 Manual |
Hydraulic Control Valve RD5200-OU2 (26.5 GPM Manual 2 Spool) – OEM & Wholesale Supply
In stock
| Weight | 11.00 kg |
|---|---|
| Dimensions | 25 × 28 × 11 cm |
| Control Method |
manual |
| Section |
2 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
100 L/min (26.4 gpm) |
| Max Pressure |
315 bar (4600 psi) |
| Operating Viscosity Range |
12 – 400 mm²/s (12 cSt to 400 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Inlet Port |
G3/4 |
| Outlet Port |
G3/4 |
| Port Size |
G1/2 |
| Min Viscosit |
12 mm2/s |
| Kick out set pressurt |
70-140 bar |
| Product Model |
RD5200-OU2 Manual |
Hydraulic Control Valve: RD5200-OU2 Manual 2 Spool, 26.5 GPM Flow
In stock
| Weight | 11.00 kg |
|---|---|
| Dimensions | 25 × 28 × 11 cm |
| Control Method |
manual |
| Section |
2 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
100 L/min (26.4 gpm) |
| Max Pressure |
315 bar (4600 psi) |
| Operating Viscosity Range |
12 – 400 mm²/s (12 cSt to 400 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Inlet Port |
G3/4 |
| Outlet Port |
G3/4 |
| Port Size |
G1/2 |
| Min Viscosit |
12 mm2/s |
| Kick out set pressurt |
70-140 bar |
| Product Model |
RD5200-OU2 Manual |
Hydraulic Flow Diverter Valve HSDV33 (15.8 GPM, Manual, 1 Spool) – Manufacturing, Wholesale & Distribution
In stock
| Weight | 1.60 kg |
|---|---|
| Dimensions | 21 × 9 × 12 cm |
| Control Method |
manual |
| Section |
1 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
120 L/min (31.7 US gpm) |
| Max Pressure |
200 bar (20 MPa) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +60°C (-40°F to +140°F) |
| Spool |
1 Spool |
| Product Model |
HSDV33 Manual |
| Inlet Port |
G3/4 |
| Outlet Port |
G3/4 |
| Port Size |
G3/4 |
Hydraulic Joystick 4.2 GPM Manual & Hydraulic 3 Spool XDF-3X Directional Control Valve
In stock
| Weight | 5.00 kg |
|---|---|
| Dimensions | 22 × 18 × 40 cm |
| Control Method |
Hydraulic and Manual |
| Section |
3 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
16 L/min (4.2 US gpm) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Inlet Port |
G1/4 |
| Outlet Port |
G1/4 |
| Port Size |
G1/4 |
| Product Model |
XDF-3X Hydraulic and Manual |
Hydraulic Monoblock Directional Valve Manufacturer: 23.8 GPM Cable 2 Spool (HSDM90B) for Wholesale
In stock
| Weight | 14.00 kg |
|---|---|
| Dimensions | 26 × 31 × 17 cm |
| Control Method |
cable |
| Section |
2 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
90 L/min (23.8 gpm) |
| Max Pressure |
315 bar (31.5 MPa) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Spool |
2 Spool |
| Inlet Port |
G1/2 |
| Outlet Port |
G3/4 |
| Port Size |
G1/2 |
| Product Model |
HSDM90B Cable |

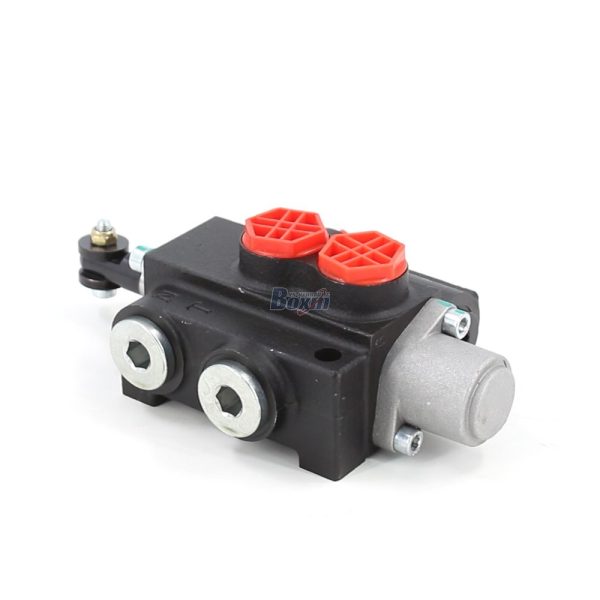

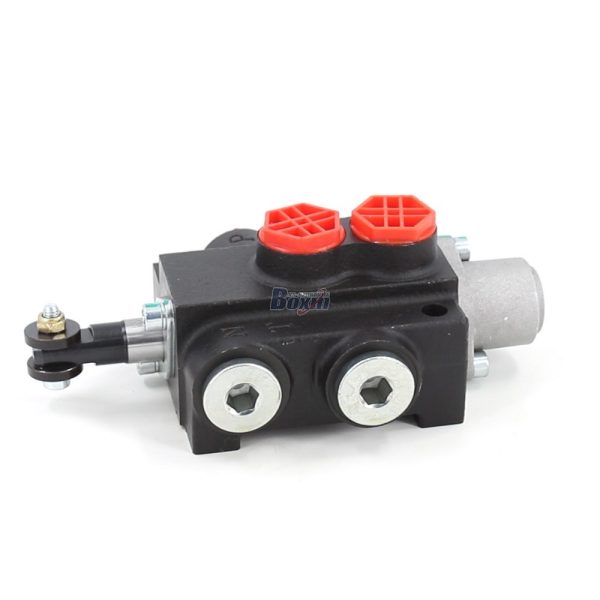

Hydraulic P40-201 Monoblock Directional Valve (10.5 GPM, Manual 1 Spool) – Production, Private Label, Wholesale
In stock
| Weight | 3.20 kg |
|---|---|
| Dimensions | 23 × 16 × 11 cm |
| Control Method |
manual |
| Section |
1 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
40 L/min (10.5 US gpm) |
| Max Pressure |
250 bar (3600 psi) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Inlet Port |
G1/2 |
| Outlet Port |
G1/2 |
| Port Size |
G1/2 |
| Product Model |
P40-201 Manual |

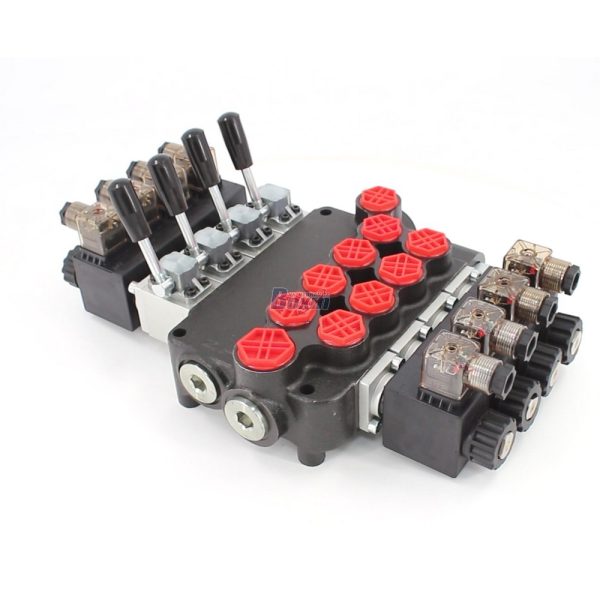

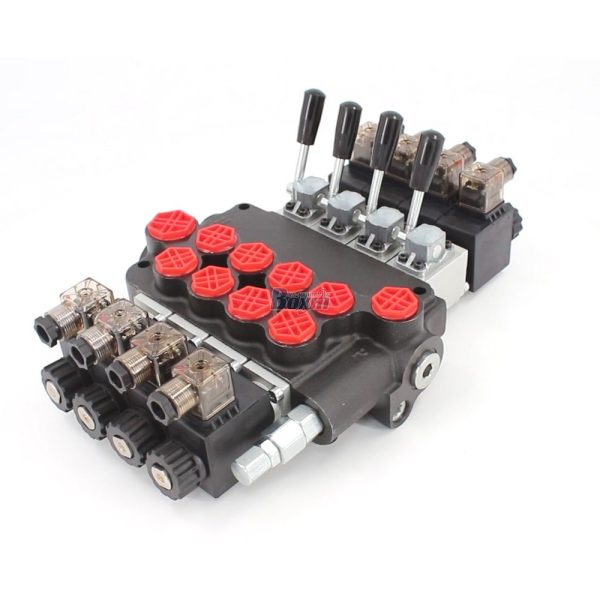

Industrial P40-S Solenoid Directional Control Valve – 10.5 GPM, 4 Spool Monoblock Design
In stock
| Weight | 12.70 kg |
|---|---|
| Dimensions | 30 × 30 × 16 cm |
| Control Method |
solenoid |
| Section |
4 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
40 L/min (10.5 US gpm) |
| Max Pressure |
250 bar (3600 psi) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Spool |
4 Spool |
| Inlet Port |
G1/2 |
| Outlet Port |
G1/2 |
| Port Size |
G3/8 |
| Product Model |
P40-S Solenoid |
Manufacturer of XDF-3X 3 Spool Hydraulic Joystick Valves with 4.2 GPM Dual Control
In stock
| Weight | 5.00 kg |
|---|---|
| Dimensions | 22 × 18 × 40 cm |
| Control Method |
Hydraulic and Manual |
| Section |
3 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
16 L/min (4.2 US gpm) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Inlet Port |
G1/4 |
| Outlet Port |
G1/4 |
| Port Size |
G1/4 |
| Product Model |
XDF-3X Hydraulic and Manual |
Monoblock Directional Valve 21.2 GPM | Hydraulic & Manual 5 Spool | P80AZ Series Manufacturer
In stock
| Weight | 17.00 kg |
|---|---|
| Dimensions | 26 × 30 × 11 cm |
| Control Method |
Hydraulic and Manual |
| Section |
5 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
80 L/min (21.2 US gpm) |
| Max Pressure |
250 bar (3600 psi) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Inlet Port |
G1/2 |
| Outlet Port |
G3/4 |
| Port Size |
G1/2 |
| Product Model |
P80AZ Hydraulic and Manual |
Sectional Directional Valve 26.5 GPM Solenoid 5 Spool DCV100E | Hydraulic Valve Manufacturer & Wholesale Supplier
In stock
| Weight | 50.00 kg |
|---|---|
| Dimensions | 50 × 43 × 20 cm |
| Control Method |
solenoid |
| Section |
5 Section |
| Structure Type |
Sectional valve |
| Rated Flow |
100 L/min (26.4 gpm) |
| Max Pressure |
250 bar (3600 psi) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Inlet Port |
M27×2.0 |
| Outlet Port |
M33×2.0 |
| Port Size |
M22×1.5 |
| Product Model |
DCV100E Solenoid |

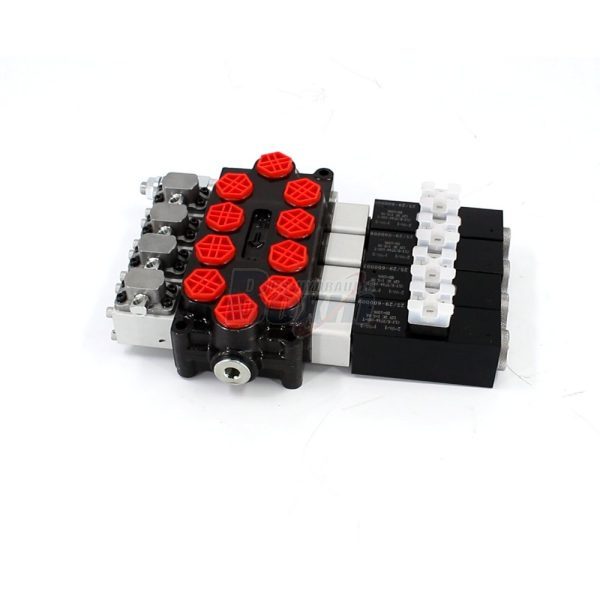

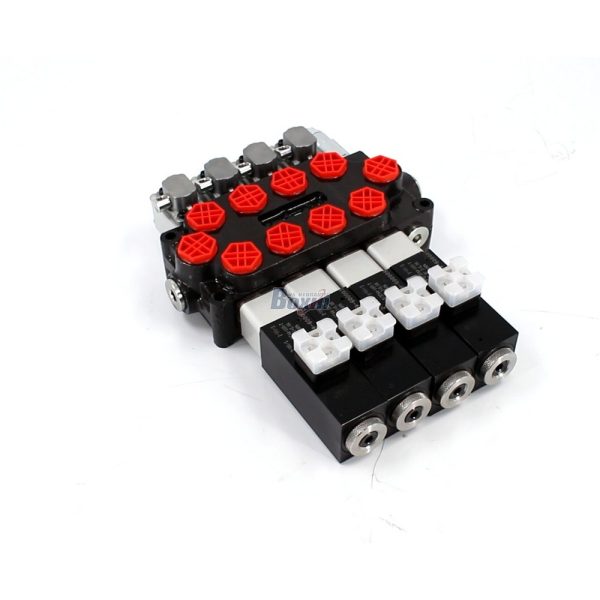

Solenoid & Manual 4 Spool Monoblock Valve (Q45 Series) for Hydraulic Applications
In stock
| Weight | 17.00 kg |
|---|---|
| Dimensions | 30 × 35 × 17 cm |
| Control Method |
Solenoid And Manual |
| Spool |
4 Spool |
| Rated Flow |
45 L/min (11.8 US gpm) |
| Max Pressure |
315 bar (4600 psi) |
| Inlet Port |
G1/2 |
| Outlet Port |
G1/2 |
| Port Size |
G1/2 |
| Section |
1 Section, 2 Section, 3 Section, 4 Section, 5 Section, 6 Section, 7 Section |
| Structure Type |
Monoblock valve |
| Product Model |
Q45 Solenoid And Manual |
Versatile 4.2 GPM Hydraulic & Manual 3 Spool Joystick Control Valve XDF-3X
In stock
| Weight | 5.00 kg |
|---|---|
| Dimensions | 22 × 18 × 40 cm |
| Control Method |
Hydraulic and Manual |
| Section |
3 Section |
| Structure Type |
Monoblock valve |
| Rated Flow |
16 L/min (4.2 US gpm) |
| Operating Viscosity Range |
15 – 75 mm²/s (15 cSt to 75 cSt) |
| Ambient Temperature Range |
-40°C to +80°C (-40°F to +176°F) |
| Inlet Port |
G1/4 |
| Outlet Port |
G1/4 |
| Port Size |
G1/4 |
| Product Model |
XDF-3X Hydraulic and Manual |
Our Products and Services
Here's what we can do
Our main products include Directional Control Valves, Gear Pumps, Steering Equipment, and Power Units, with over 500 models that are widely used in various industries such as construction, sanitation, drilling, and mining. In addition to our standard product offerings, we also support OEM/ODM services, allowing us to customize hydraulic products according to our customers' specific needs and requirements. Our professional R&D team and advanced production technology ensure the quality and timely delivery of our products, while our comprehensive pre-sales and after-sales services help our customers improve their product competitiveness.
