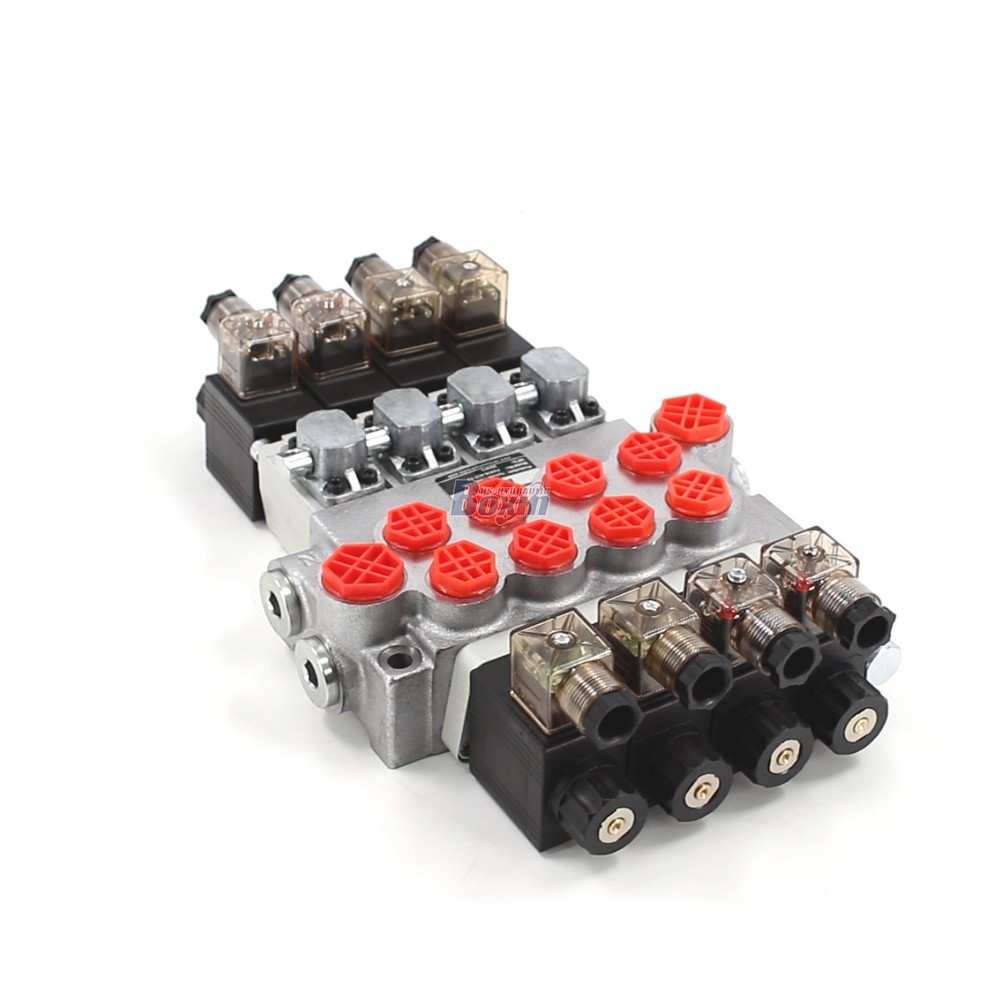

Custom Hydraulic Monoblock Directional Valve (P40-DS, 10.5 GPM, 4 Spool) – Private Label & Distribution Services

This Monoblock Directional Valve (P40-DS Series) is a robust 4-spool, solenoid-controlled hydraulic component with a 10.5 GPM (40 L/min) flow rate and a maximum pressure of 250 bar. Designed for demanding applications, it provides precise control for various machinery, including forklifts, telehandlers, excavators, and agricultural equipment.

in stock

5-10 days

not in stock

25-30 days

24/7 Support

Unlimited help desk

the warranty

12-month warranty

Additional information
Weight 12.00 kg
Dimensions 32 × 32 × 18 cm
Control Method

solenoid

Section

4 Section

Structure Type

Monoblock valve

Rated Flow

40 L/min (10.5 US gpm)

Max Pressure

250 bar (3600 psi)

Operating Viscosity Range

15 – 75 mm²/s (15 cSt to 75 cSt)

Ambient Temperature Range

-40°C to +80°C (-40°F to +176°F)

Inlet Port

G1/2

Outlet Port

G1/2

Port Size

G3/8

Product Model

P40-DS Solenoid

Description

As a major manufacturer in hydraulic products, we offer a high-performance Monoblock Directional Valve, P40-DS Series, designed for global markets. This robust **solenoid directional valve** features a **4 spool** configuration, delivering a **rated flow of 10.5 GPM (40 L/min)** and capable of handling a **max pressure of 250 bar (3600 psi)**. With G1/2 inlet/outlet ports and G3/8 working ports, this **monoblock hydraulic valve** is engineered for reliable operation in demanding conditions.

Our **P40 series valve** is ideally suited for a wide range of applications, including **material handling, construction and earth moving, industrial vehicles, and agriculture**. It provides effective **hydraulic control** for machinery such as **forklifts, telehandlers, mini-excavators, skid steer loaders, compact wheel loaders, tractors, front-end loaders, harvesters, balers, and backhoes**. This makes it a versatile **hydraulic system component** for heavy equipment.

We are a trusted **manufacturer** offering flexible partnership opportunities. Our capabilities include **OEM manufacturing, ODM services, private label options, and tailored customization** to meet specific client requirements. We also provide **factory wholesale** and **bulk supply** for distributors and businesses seeking reliable **hydraulic control valves**.

We are actively seeking strong partnerships with **distributors, wholesalers, agents, and traders** worldwide to expand the reach of our high-quality **hydraulic components**. Partner with a reputable **factory supply** source for consistent product availability and support.
