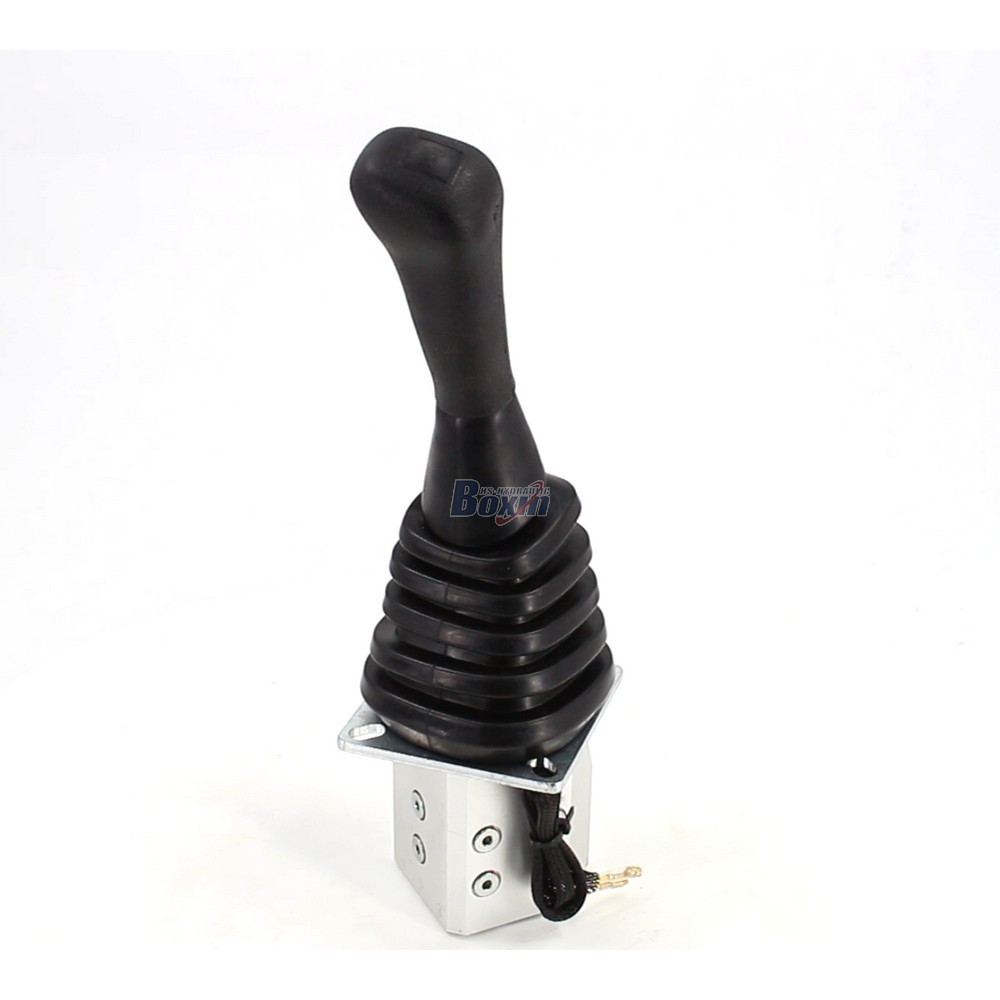

Robust XDF-2 Model 4.2 GPM 2 Spool Hydraulic Joystick for Heavy Machinery

The XDF-2 Series Hydraulic Joystick is a 2-spool control valve with G1/4 ports, rated for 4.2 GPM and 870 psi. It provides precise control for material handling, construction, and agricultural machinery, including forklifts, telehandlers, and mini-excavators.

in stock

5-10 days

not in stock

25-30 days

24/7 Support

Unlimited help desk

the warranty

12-month warranty

Additional information
Weight 4.00 kg
Dimensions 22 × 17 × 37 cm
Control Method

Joystick

Spool

2 Spool

Rated Flow

16 L/min (4.2 US gpm)

Max Pressure

6 MPa (870 psi)

Structure Type

Monoblock valve

Inlet Port

G1/4

Outlet Port

G1/4

Port Size

G1/4

Section

2 Section, 3 Section

Operating Viscosity Range

15 – 75 mm²/s (15 cSt to 75 cSt)

Ambient Temperature Range

-40°C to +80°C (-40°F to +176°F)

Product Model

XDF-2 Joystick

Description

As a major manufacturer of hydraulic products for the global market, we proudly offer the XDF-2 Series Hydraulic Joystick. This robust 2-spool control valve features G1/4 inlet and outlet ports, a rated flow of 16 L/min (4.2 US gpm), and a maximum pressure of 6 MPa (870 psi). Engineered for reliable performance, it is highly suitable for diverse application areas including material handling, construction and earth moving, agriculture, and various industrial vehicles.

Our hydraulic joystick is a versatile solution for equipment such as telehandlers, forklifts, stackers, aerial platforms, mini-excavators, skid steer loaders, compact wheel loaders, dumpers, tractors and front-end loaders, and harvesters. It offers precise and smooth control for demanding operations across these sectors.

We actively seek partnerships with distributors, wholesalers, agents, and traders worldwide. We provide comprehensive manufacturing capabilities, including original equipment manufacturing (OEM), original design manufacturing (ODM), private label services, and full customization options to meet specific client requirements. Our factory direct supply ensures competitive wholesale pricing and consistent product quality for bulk orders. Partner with us for a dependable supply of high-quality hydraulic control components from an established factory.
